How should the feed extruder be operated? What should be paid attention to?

May 09, 2025

1. Check all parts, especially the connecting screws of each section of the puffing chamber, the anchor bolts, the connecting bolts of the motor seat and the frame, and the bolt connection between the puffing chamber and the frame. There must be no looseness.
2. Manually rotate the main shaft. At this time, there must be no friction sound in the puffing chamber.
3. Start the feeding auger and check its stepless high-speed performance. It is required to operate normally.
4. Check and clean the water and air circuits before starting the machine. All filters need to be cleaned.
5. Before starting the machine, check whether the wiring of the electronic control part is correct, whether the direction of each motor is correct, and whether the control is reliable.

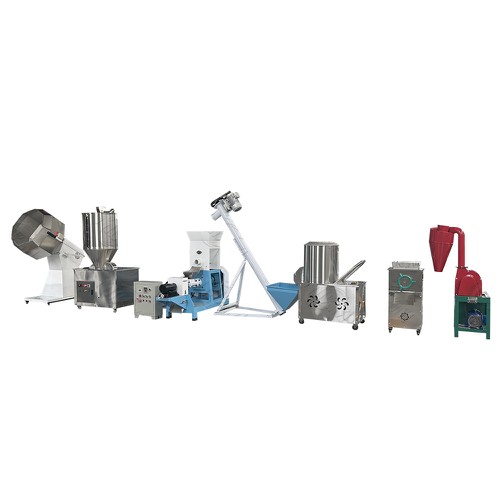

floating feed  production line



Model Power Feeder Cutter Capacity Dimension Weight
DGP40 4KW 0.4KW 0.4KW 0.04-0.05T/H 1400*1030*1200MM 240KG
DGP50 11KW 0.4KW 0.4KW 0.06-0.08T/H 1400*1030*1200MM 320KG
DGP60 15KW 0.4KW 0.4KW 0.12-0.15T/H 1450*950*1430MM 480KG
DGP70 18.5KW 0.4KW 0.4KW 0.18-0.25T/H 1600*1400*1450MM 600KG
DGP80 22KW 0.4KW 0.75KW 0.3-0.35T/H 1850*1470*1500MM 800KG
DGP90 30KW 1.1KW 1.5KW 0.4-0.45T/H 1900*1500*1600MM 1200KG


6. After stopping the machine, you must wear high-temperature gloves, quickly remove the discharging mold, and clean it immediately while it is hot. And start the main motor to empty the accumulated materials in the puffing chamber. When puffing corn, soybean powder should be added to rinse the materials in the chamber.
7. Pay attention to safety when unloading the machine. No one can stand in front to avoid the danger caused by the residual pressure of the puffing machine chamber.
8. After the equipment is running normally, it must not be stopped at will.
The feed extruder is a high-precision machine that requires regular inspection and maintenance to ensure the normal operation of the equipment. For example, check the seal, change the oil, etc.
In summary, you should pay attention to safety when using the feed extruder and operate it according to the correct method of use. During the use of the equipment, you should also strengthen maintenance to extend the service life of the equipment and improve the efficiency and quality of feed production.
