Floating Fish Feed Pellet Production Line

Fish Feed Pellet Production Line

A fish feed pellet production line is an automated or semi-automated complete set of equipment integrating raw material pretreatment, mixing, extrusion puffing, pelleting, cooling, screening, and packaging. It is specifically designed to process raw materials such as fishmeal, soybean meal, corn, and wheat bran into pelleted feed (including floating, sinking, and semi-sinking pellets) that meet the needs of aquaculture.

40-300KG/H Feed Pellet Production Line

200-800KG/H Feed Pellet Production Line

500-2000KG/H Feed Pellet Production Line

3-4T/H Feed Pellet Production Line

5-10T/H Feed Pellet Production Line

Can be customized according to your detail requirement.

24 hours to reply to technical inquiries

Types of Fish Feed production Line

There is no standard size all customized according to the actual fish feed plant space.

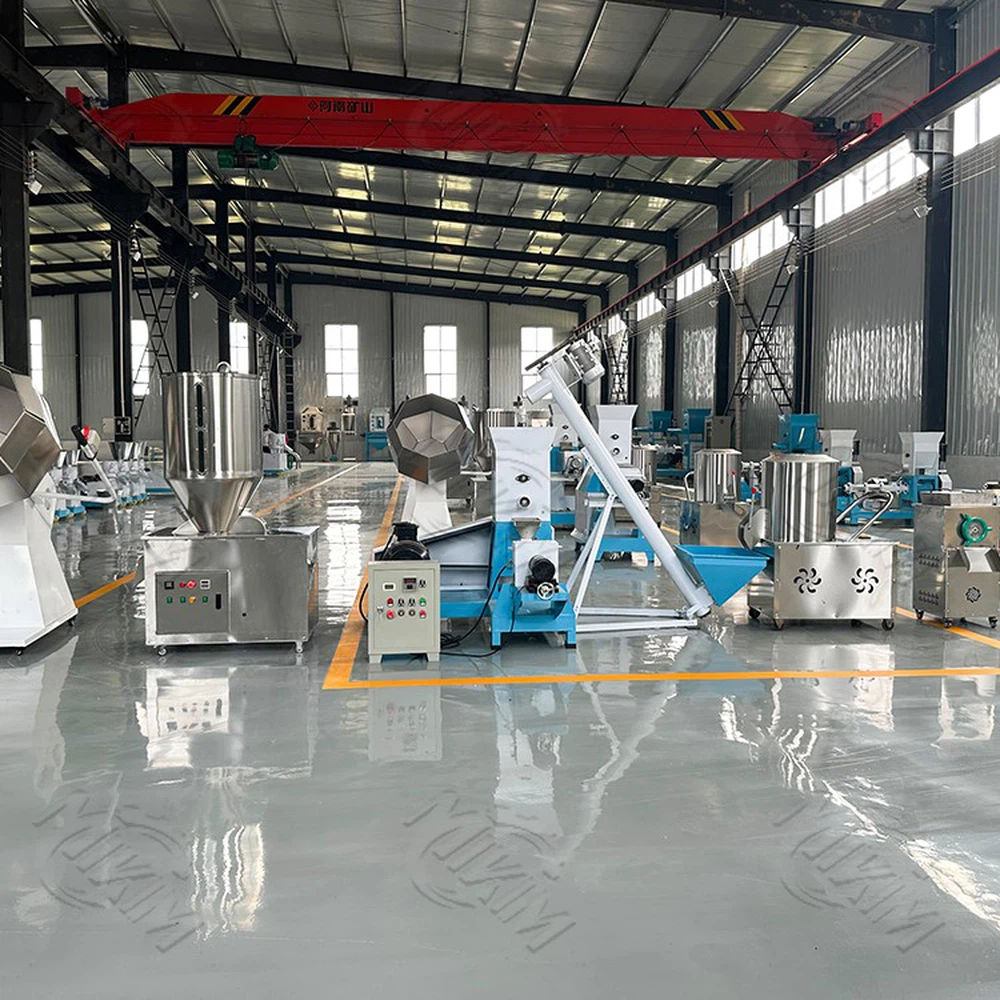

fish food production line

40-300kg/h Aquatic/Pets Fish Feed Small Production Line Farm Use

This small floating fish feed production line including: Crusher + Mixer + Feed pellet extruder + Dryer. Powered range: 16-68kw, Capacity range: 40-300kg/h, Which can produce floating fish feed pellets, dry cat/dog foods, shrimp feed and other Aquatic feed pellets.Suitable Fish farm or small feed shop.

Capacity	40-300kg/h
Power	16-68kw
Range of application	Fish farm or small feed shop
Product advantages	Cheap and simple operation,Easy to move,small size,Low transportation cost,pellet size could be chosen from 1-12mm
Process flow	1.Crusher -2.Mixer -3.Feed pellet extruder -4.Dryer
Size for whole line	5×2×3m
Workers requirements	2 people
Shipment requirements	Wooden case package by LCL (4-7CBM)

I'm interested in this model

200-800kg/h Commercial use Aquatic/pets feed production line

This medium size fish feed production line including: Crusher + Conveyor + Mixer + Conveyor + Feed pellet extruder+ Air conveyor + Dryer + Air conveyor + Seasoning machine + Air conveyor + Cooler + Air conveyor + Finished product silo. Capacity range: 200-800 kg/h, Which can produce floating fish feed pellets, dry cat/dog foods, shrimp feed and other Aquatic feed pellets.Suitable for small/medium Commerical Aquatic /pets feed factory,big farm

There are many variations of passages of available but the majority have suffered alteration in some form, by injected humou or randomised words even slightly believable. All of our products are formaldehyde free environmental protection,provide the most healthy home for you.

Capacity	200-800kg/h
Power	86-152kw
Range of application	Good for small/medium commerical Aquatic /pets feed factory,big farm
Product advantages	Stable output,high efficiency,continuous work,labor saving, can pack directly,pellet size could be chosen from 1-12mm
Process flow	1.Crusher -2.Conveyor -3.Mixer -4. Conveyor -5.Feed pellet extruder -6.Air conveyor -7.Dryer -8.Air conveyor -9.Seasoning machine -10.Air conveyor -11.Cooler -12. Air conveyor -13. Finished product silo
Size for whole line	25×3×6m
Workers requirments	2-3 people
Shipment requirments	40ft container

I'm interested in this model

500-2000kg/h Commercial use Aquatic/pets feed production line

This medium size fish feed production line including: Bucket elevator + Buffer bin + Hammer mill + Bucket elevator + Buffer bin + Mixer + Bucket elevator + Broken arch bin + Wet way feed pellet extruder + Air conveyor + Dryer + Air conveyor + Seasoning machine + Air conveyor + Cooler + Air conveyor + Finished product silo. Capacity range: 500-2000kg/h, Which can produce floating fish feed pellets, dry cat/dog foods, shrimp feed and other Aquatic feed pellets.Suitable for medium/big commerical Aquatic /pets feed factory

Capacity	500-2000kg/h
Power	94-217kw
Range of application	Good for medium/big commerical Aquatic /pets feed factory
Product advantages	Long working life,make high protein feed,Stable output,high efficiency, continuous work,labor saving,can pack directly,pellet size could be chosen from 1-12mm
Process flow	1.Bucket elevator -2.Buffer bin -3.Hammer mill -4.Bucket elevator -5.Buffer bin -6.Mixer -7.Bucket elevator -8.Broken arch bin -9.Wet way feed pellet extruder -10.Air conveyor -11.Dryer -12.Air conveyor -13.Seasoning machine -14.Air conveyor -15.Cooler -16.Air conveyor -17.Finished product silo
Size for whole line	Length: 35m-50m Width: 6m Height: 8m
Workers requirements	3-5 Workers
Shipment requirements	2×40ft container

I'm interested in this model

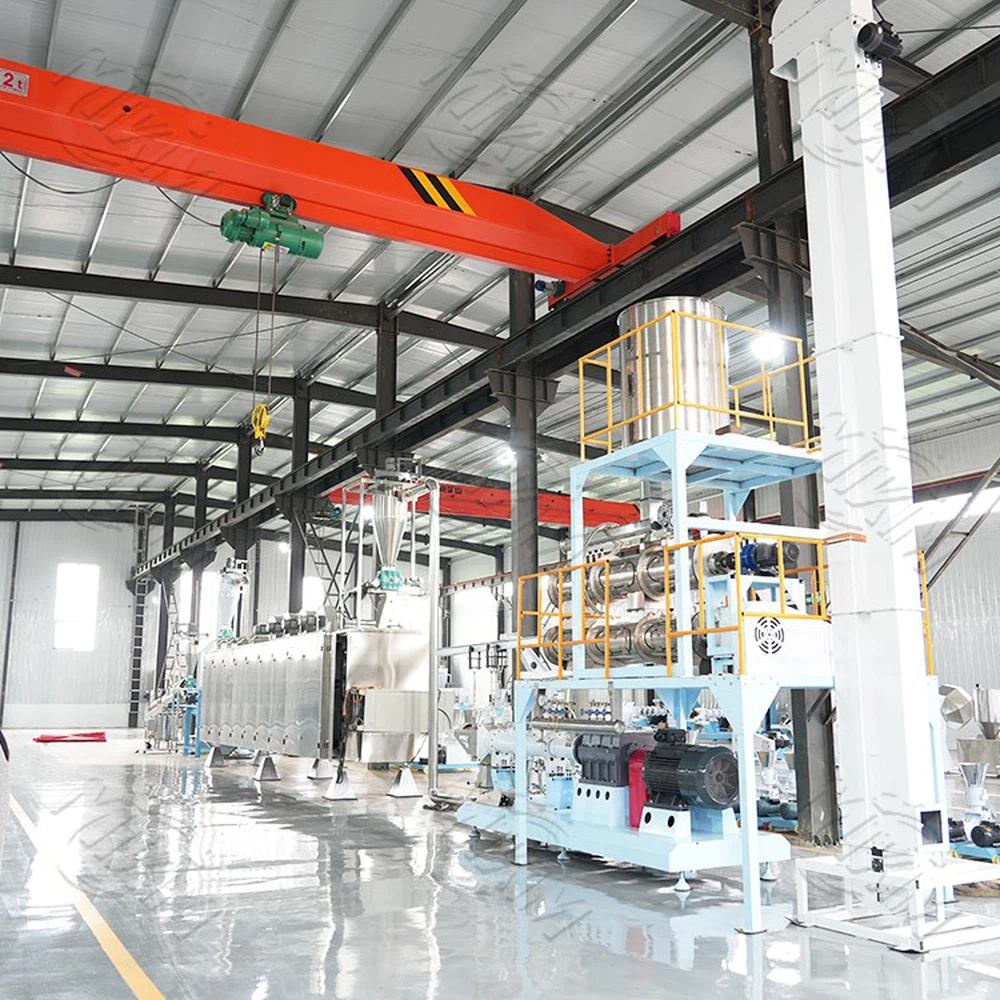

Large-scale extruded feed production line

3-4ton/h Commercial use Aquatic/pets feed production line

This medium size fish feed production line including: Bucket elevator + Buffer bin + Impeller feeder with iron removal device + Hammer mill with dust collector + Bucket elevator + Buffer bin + Mixer + Bucket elevator + Broken arch bin + Wet way feed pellet extruder + Air conveyor + Dryer + Bucket elevator + Seasoning machine + Bucket elevato + Cooler + Bucket elevator + Finished product silo + Packing and seal machine. Capacity range: 3~4ton/h, Which can produce floating fish feed pellets, dry cat/dog foods, shrimp feed and other Aquatic feed pellets.Suitable for large commerical Aquatic /pets feed factory

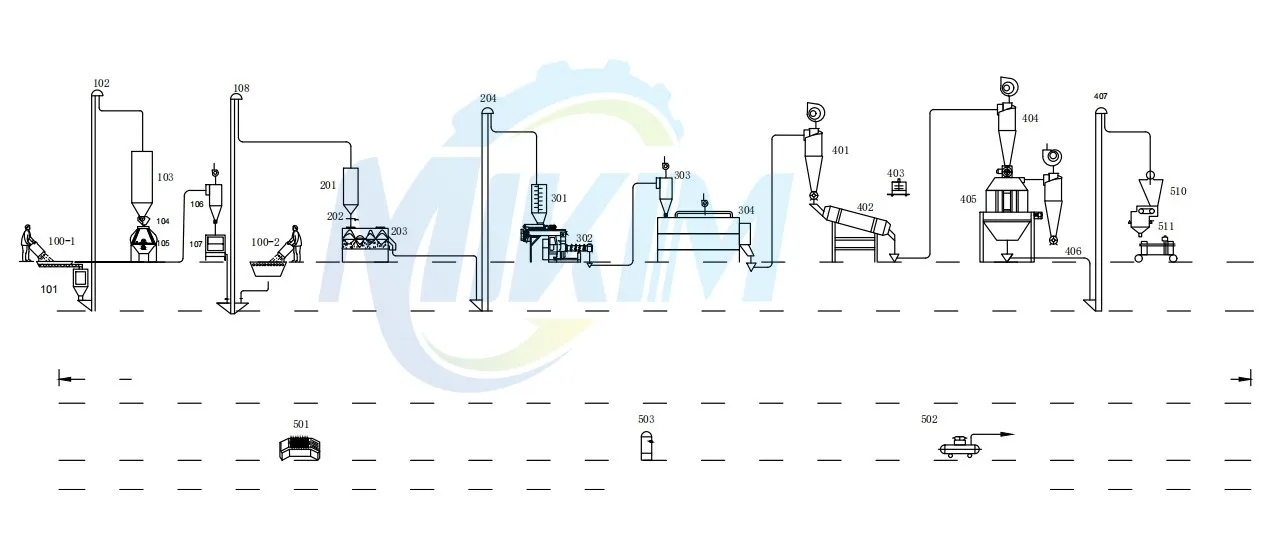

floating fish feed making production line

Capacity	3-4ton/h
Range of application	Suitable for large commerical Aquatic /pets feed factory
Product advantages	Fully automatic intelligent batching, computer control system!导命长,ong working life,make high protein feed ,Stable output, high efficiency, continuous worklabor savingcan pack directly,pellet size could bechosen from 1-12mm
Process flow	1.Bucket elevator -2.Buffer bin -3.Impeller feeder with iron removal device -4.Hammer mill with dust collector -5.Bucket elevator -6.Buffer bin -7.Mixer -8.Bucket elevator -9.Broken arch bin -10.Wet way feed pellet extruder -11.Air conveyor -12.Dryer -13.Bucket elevator -14.Seasoning machine -15.Bucket elevato -16.Cooler -17.Bucket elevator -18.Finished product silo -19.Packing and seal machine
Size for whole line	Length: 45m-50m Width: 8m Height: 10m
Workers requirements	4-6 Workers
Shipment requirements	4×40ft container
Shipment requirements	2×40ft container

I'm interested in this model

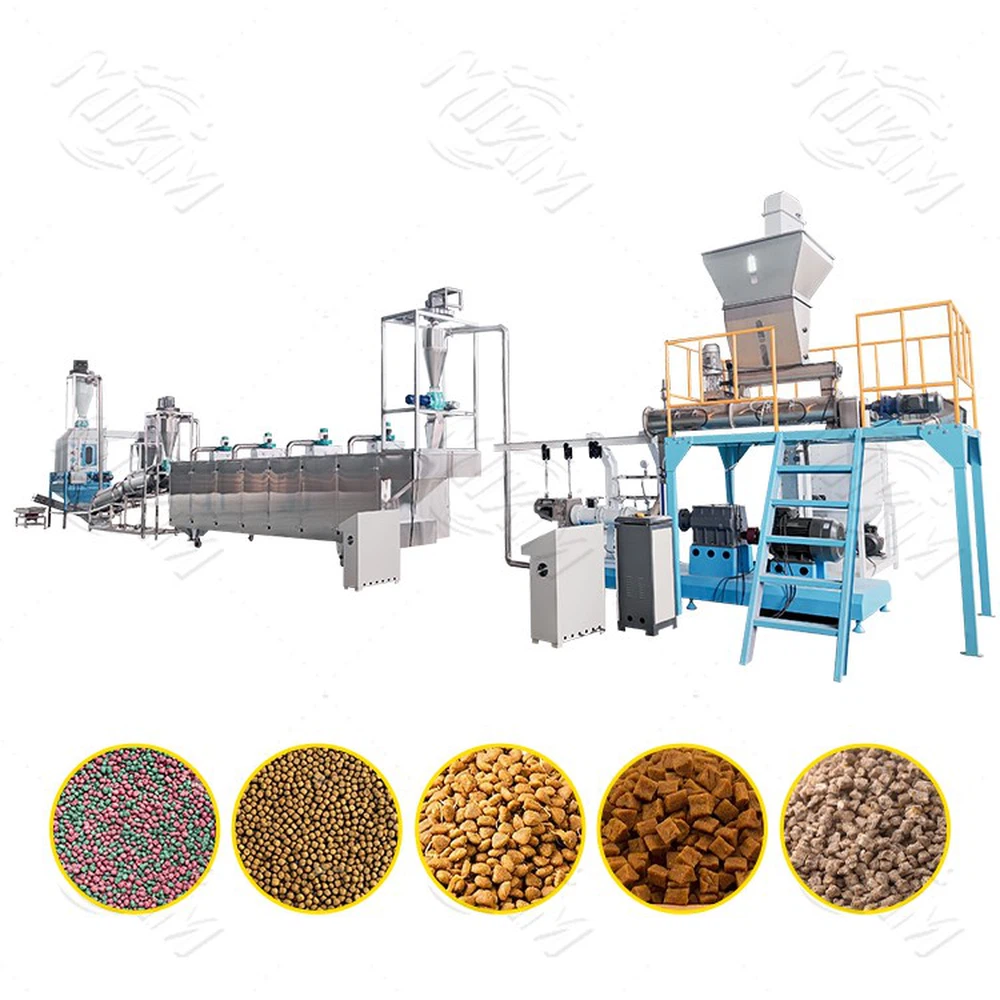

Fully automatic feed puffing production line

5-10ton/h Commercial use Aquatic/pets feed production line

This large size fish feed production line including: 1.bucket elevator -2.raw materials cleaning system-3.silos for crusher -4.crusher-5.Raw material automatic distribution weighing system-6.mixing system -7.second crushing system-8.Raw material automatic distribution weighing system9.second mixing system -10.extruder-11.drying system-12.screen system-13.seasoning machine-14.cooling system-15.packing system. Capacity range: 5~10ton/h, Which can produce floating fish feed pellets, dry cat/dog foods, shrimp feed and other Aquatic feed pellets.Suitable for large commerical Aquatic /pets feed factory

Aquaculture Extruded Pellet Feed Production Line

Capacity	5-10ton/h
Range of application	Suitable for large commerical
Product advantages	Long working life,make high protein feed , stable output, high efficiency, continuous work, labor saving, can pack directly,pellet size could be chosen from 1-12mm
Process flow	1.bucket elevator -2.raw materials cleaning system-3.silos for crusher -4.crusher-5.Raw material automatic distribution weighing system-6.mixing system -7.second crushing system-8.Raw material automatic distribution weighing system9.second mixing system -10.extruder-11.drying system-12.screen system-13.seasoning machine-14.cooling system-15.packing system
Size for whole line	Length: 45m-50m Width: 8m Height: 10m
Workers requirements	4-5 people
Shipment requirements	5x40ft container

I'm interested in this model

productcate-1-1

Company profile

Tianjin Mikim Technique Co.,Ltd.
Mikim Machinery is a high-tech enterprise integrating scientific research, design, man-ufacture,installation and commissioning, andafter-sales service.35 years have been dedicated to the design and production of the feed machinery in-dustry, which has passed many certificates such as CE, ISO, etc.Now we are mainly engaged in two fields: feed pellet machine production ine (ham-mer mill-mixer-conveyor-feed pellet ma.chine-cooling&vibration system-pa.cking andsealing) and feed extruder production line (mixer-twin screw extruder machine-dry-er-drum seasoning machine-cooling towers-packing machine),We produce high quali-ty and low price equipment, exported to all over the world, enjoy a good reputation,and perect after-sales service system can help customers solve all the problems.

productcate-1-1

Fish Feed Pellet Production Line Quality Control, Service & After-Sales Support

1. Strict Quality Control Before Delivery

The quality of a fish feed pellet production line directly affects feed stability, pellet quality, and long-term production efficiency. Before shipment, every machine undergoes comprehensive inspection and production testing to ensure stable operation under real working conditions.

Our quality control process includes:

Inspection of motors, gearboxes, bearings, and electrical systems
Testing of feeding, extrusion, cutting, drying, and cooling systems
Checking pellet size uniformity and production capacity
Trial operation to ensure smooth running without blockage or abnormal vibration
Safety inspection of the complete production line

Each machine is tested before delivery to ensure customers receive equipment that is stable, efficient, and ready for production.

2. Professional Pre-Sales Technical Support

Different customers require different feed solutions depending on raw materials, fish species, pellet size, and production capacity. Our technical team provides professional recommendations based on customer requirements.

We help customers:

Select suitable machine models and production line configurations
Choose proper pellet sizes for fish, shrimp, or aquatic feed
Optimize equipment layout for factory space utilization
Reduce energy consumption and unnecessary investment costs
Improve feed quality and production efficiency

This customized support helps customers build a more efficient and profitable feed production system.

3. Installation & Operation Guidance

After the equipment arrives, we provide detailed installation and operation support to help customers start production smoothly.

Our support includes:

Machine installation guidance
Electrical connection instructions
Equipment operation training
Production process guidance
Maintenance and daily inspection recommendations

Customers can quickly understand machine operation and reduce errors during production startup.

4. Reliable After-Sales Service

Stable after-sales support is essential for long-term production. Our technical team provides fast response service to help customers solve operational problems efficiently.

After-sales services include:

Remote technical support via video or online communication
Troubleshooting assistance for machine operation issues
Guidance for machine adjustment and maintenance
Spare parts supply for long-term operation
Technical advice for feed formula and production optimization

This helps customers reduce downtime and maintain continuous production efficiency.

5. Long-Term Cooperation & Customer Support

We focus not only on selling machines, but also on building long-term cooperation with customers. From equipment selection to future production expansion, we provide continuous technical support to help customers improve productivity and product quality.

With reliable equipment, professional service, and strong after-sales support, our fish feed pellet production line helps customers build a stable, efficient, and profitable feed production business.

FAQ

01.What is a floating fish feed extruder machine?

A small floating fish feed machine is a piece of equipment used for processing animal feeds. It alters the physical and chemical properties of feed ingredients through high-temperature, high-pressure conditions and mechanical shear forces to enhance their solubility, digestibility, and texture, thereby improving feed utilization by animals.

02.How does a Floating Fish Feed Extruder process work?

Anaquarium floating fish feed extruder works by pushing feed ingredients into an extrusion screw and then subjecting them to high temperatures and pressures to extrude the materials. During extrusion, the materials expand and generate heat, causing starch gelatinization and protein denaturation, thereby increasing their solubility and digestibility.

03.Can the small floating fish feed extruder price be much lower?

Our MOQ is the very reasonable price for 1 set, but with big order, we can apply to our Manager to provide a proper discount. The more quantity ordered, the lower the price. If you become our foreign distributor, we will provide you with a negotiated price.

04.Can I have different models with different price?

Yes, there have different models according to different raw material and different capacity.

05.How to choose the size of the sprocket?

The standard of sprockets can be determined according to different application requirements. The difference between metric sprockets and sprockets built to ANSI standards is that they use different units of measurement for chain specifications.

06.Do you offer oversea installation?

We'll send professional installation engineer to help you install the equipment, as well as train your workers freely.

If you would like to obtain more detailed information, we offer free consultation services!
