Feed Pellets Processing Technology
Raw Material → Feed Grinding → Feed Mixing → Feed Pelletizing → Pellet Cooling → Pellet Crushing → Screening & Grading → Pellet Packing

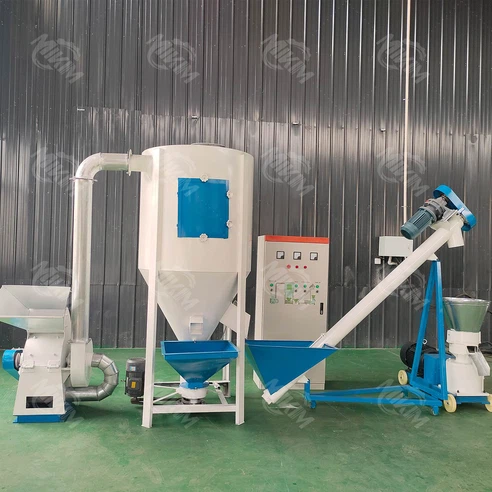

Equipment Related to Complete animal food production plant
Feed Grinder →Feed Mixer → Feed Pellet Mill → Counterflow Cooler → Feed Pellets Crumbler → Feed Pellets Grading Sieve → Automatic Weighing and Packing Machine
Feed pellet mill, is a kind of high efficiency, large capacity, low energy consumption, environmentally friendly equipment, which is widely used in large, medium and small aquaculture, grain feed processing plants, livestock farms, poultry farms.
Diesel pellet mill and motor pellet mill difference
First, the driving method is different
Diesel pellet mills are driven by the power of a diesel engine, whereas motor pellet mills, which are commonly used in general, are driven by the power of an electric motor. This means that the diesel pellet mill can be used outdoors where there is no power supply, while the motorized pellet mill needs a power supply to work.
Cutting speed and efficiency are different
Since the diesel engine is more powerful, the cutting speed and efficiency of a diesel pellet mill is faster than that of a motorized pellet mill. At the same time, the diesel pellet mill can also be adjusted according to the different working conditions of the rotational speed, improve efficiency. However, it is also because of its stronger power, diesel pellet mill noise and fuel consumption than motor pellet mill to be higher.
Third, the use of different environments
Because of the higher noise and fuel consumption of diesel pellet mill, it is more suitable for outdoor occasions and places without power supply. The motor pellet mill can be used in indoor environment, and because of its noise and low fuel consumption, it is more suitable to be used in places with higher requirements on noise and fuel consumption.
Product Parameters

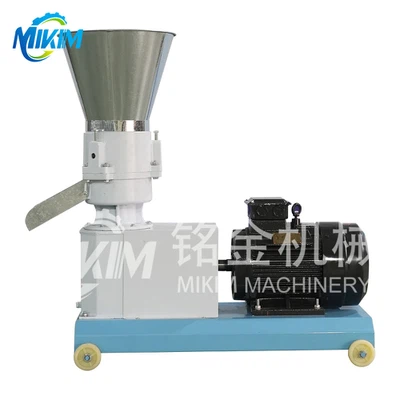

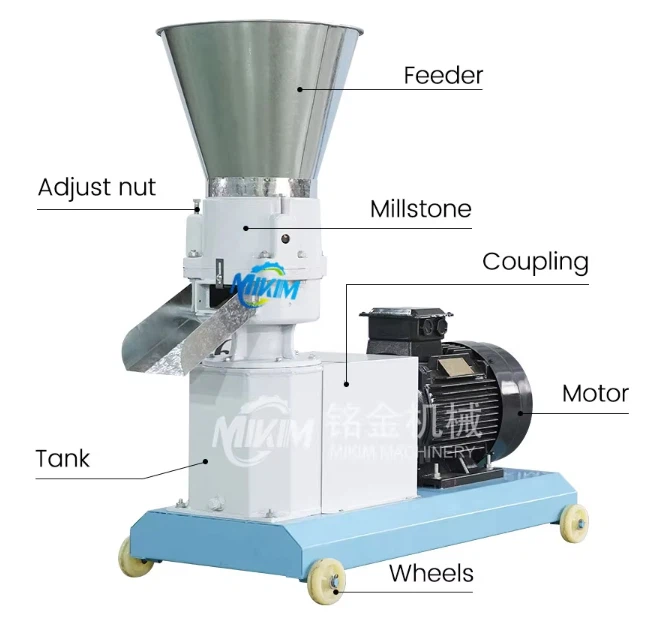

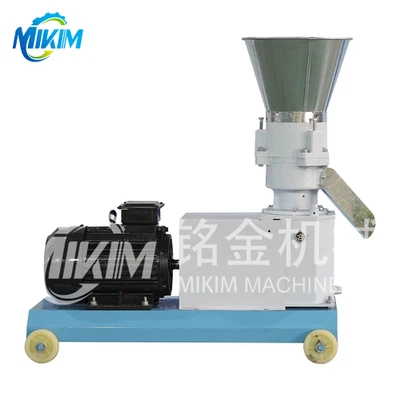

Electric farm feed pellet mill
|
Model (Electric) |
capacity (kg/h) |
Main power (kw) |
Pollet size (mm) |
Machine size (mm) |
Weight (kg) |
|
BH-125 |
80-100 |
3 |
2-8 |
850*350*750 |
95 |
|
BH-150 |
90-150 |
4 |
2-8 |
850*350*750 |
98 |
|
BH-160 |
150-200 |
4.5 |
2-8 |
850*350*750 |
100 |
|
BH-210 |
200-300 |
7.5 |
2-8 |
1100*520*780 |
200 |
|
BH-230 |
250-350 |
1 1 |
2-8 |
1200*530*820 |
250 |
|
BH-260 |
400-500 |
15 |
2-8 |
1250*560*920 |
320 |
|
BH-300 |
600-800 |
22 |
2-8 |
1450*660*960 |
415 |
|
BH-360 |
900-1000 |
22 |
2-8 |
1550*720*1150 |
600 |
|
BH-400 |
1200-1500 |
30 |
2-8 |
1650*780*1220 |
800 |
|
BH-500 |
1500-1600 |
45 |
2-8 |
1960*880*1500 |
1000 |
| 1.Used for making animal feed pellets
2.Used for making wood pellets as fuel |
|||||
Diesel Animal Pellet Feed Machine
| Model (Electric) | Capacity (kg/h) | Main power (HP) | Pollet size (mm) | Machine size (mm) | Weight (kg) |
|---|---|---|---|---|---|
| LX-K120A | 60-100 | 8 | 2-8 | 730320670 | 120 |
| LX-K150A | 150-220 | 8 | 2-8 | 870460730 | 130 |
| LX-K210A | 200-300 | 15 | 2-8 | 11805601020 | 320 |
| LX-K230A | 300-400 | 22 | 2-8 | 1180560950 | 360 |
Details Images
The feed pellet machine features an advanced design to guarantee high-efficiency
production. A variable frequency feeder evenly regulates the feeding speed, keeping the main unit in optimal operating condition.The extended and enlarged modulator increases the contact time between the material and steam, ensuring thorough cooking and sterilization, guaranteeing hygienic and delicious pellets.
The feed pellet machine uses the highest quality materials, ensuring a longer service
life and superior production performance. Our ring dies and blades undergo special wear-resistant treatment, greatly reducing replacement frequency and maintenance costs.It utilizes food-grade 304 stainless steel, forged blades, and high-quality bearings. The quality far exceeds industry standards.
The second core component of the feed pellet mill. The gear drive directly connects the
motor and bearing, improving transmission efficiency by 15% compared to traditional belt drives, and has a near-zero failure rate, greatly reducing maintenance costs and making it extremely robust and durable.
| Model | Capacity (Ton/h) | Main power (kw) | Feeder power (kw) | Conditioner power (kw) | Machine size (m) | Weight (kg) |
|---|---|---|---|---|---|---|
| SZLX-250 | 1-2 | 22 | 0.75 | 1.1 | 1.70.651.75 | 715 |
| SZLX-320 | 2-4 | 37 | 0.75 | 2.2 | 1.81.551.65 | 1400 |
| SZLX-350 | 2-6 | 55 | 0.75 | 2.2 | 2.151.951.9 | 2000 |
| SZLX-400 | 3-8 | 90 | 1.5 | 4 | 2.322 | 2500 |
| SZLX-420 | 4-12 | 110 | 1.5 | 4 | 2.32.32.09 | 3200 |
| SZLX-508 | 4-18 | 132 | 1.5 | 5.5 | 3.352.352.2 | 4300 |
Differences between flat die pellet mills and ring die pellet mills
The flat die pellet machine has a slow speed and low temperature, and is suitable for raw materials with low viscosity, such as fermented feed. It has a low pellet breakage rate and is suitable for scenarios with high requirements for pellet hardness. The flat die pellet machine has a relatively low output, but it is easy to operate and suitable for small farms or home use.
The ring die pellet machine has a fast speed, high temperature, and large output, and is suitable for feeds with high requirements for pellet maturity. It is suitable for large-scale production, especially in feed mills. The production cost of the ring die pellet machine is high, but it consumes less electricity and is suitable for environments with high production requirements.
In terms of price, the flat die pellet machine is usually lower in price, while the ring die pellet machine is higher in price. Therefore, the choice of which pellet machine depends on the budget and production needs.
Fish feed pellet production line
This medium size fish feed production line including: Crusher + Conveyor + Mixer + Conveyor + Feed pellet extruder+ Air conveyor + Dryer + Air conveyor + Seasoning machine + Air conveyor + Cooler + Air conveyor + Finished product silo. Capacity range: 200-800 kg/h, Which can produce floating fish feed pellets, dry cat/dog foods, shrimp feed and other Aquatic feed pellets.Suitable for small/medium Commerical Aquatic /pets feed factory,big farm
Our equipment has LX series and DGP series, the main difference is the different models, LX series of equipment, the electronic control cabinet is set in the equipment, the operation is more convenient, DGP series of equipment, the electronic control cabinet is independent of the equipment next to the LX model is more high-end, the DGP model is more affordable. So you can choose according to their actual needs.
LX-Feed Extruder Machine prices range from 1500-3500$.
The price of DGP-Feed Extruder Machine is between 1100-15000$.
Prices are affected by many factors, please contact us.
|
Model
|
45
|
65
|
75
|
85
|
|
Power
|
5.5KW
|
15KW
|
18.5KW
|
22KW
|
|
Capacity (kg/h)
|
40-50
|
120-150
|
200-250
|
400
|
|
Weight
|
360KG
|
450KG
|
550KG
|
800KG
|
|
Size(mm)
|
1720*870*1100
|
2200*2900*1200
|
2200*3100*1370
|
2300*3150*1380
|
Application
DGP Fish Feed Extruder
The DGP series floating fish feed extruder is a piece of equipment used in aquaculture to produce high-quality feed pellets for fish and other aquatic animals. It can produce feed pellets of various sizes, shapes, and nutritional compositions, thereby improving the growth, health, and overall quality of fish.
Features
1. The density of pet feed and aquatic feed can be controlled.
2. Dry puffing process adopts self-heating method and does not require steam system.
3. The screw design has powerful self-cleaning function
4. Variable speed cutting head, adjustable gap between cutter and template.
5. The machine has novel design, compact structure and high production efficiency.
|
Model |
Main motor (kw) |
Feeder (KW) |
Cutter(KW) |
Capacity (kg/h) |
Machine size (m) |
Weight(kg) |
|
DGP-40 |
5.5 |
0.4 |
0.4 |
40-50 |
1.36*1.3*0.8 |
320 |
|
DGP-60 |
15 |
0.4 |
0.4 |
120-150 |
1.36*1.33*0.86 |
420 |
|
DGP-70 |
18.5 |
0.4 |
0.4 |
200-250 |
1.36*1.33*0.86 |
550 |
|
DGP-80 |
22 |
1.5 |
0.55 |
300-350 |
2.3*1.7*1.4 |
720 |
|
DGP-90 |
30 |
1.5 |
0.55 |
400-450 |
2.3*1.7*1.4 |
1100 |
|
DGP-100 |
37 |
1.5 |
1.5 |
500 |
2*2.8*1.2 |
1500 |
|
DGP-120 |
55 |
1.5 |
1.5 |
600-700 |
2.2*2.9*1.2 |
1800 |
|
DGP-135 |
75 |
1.5 |
2.2 |
800-900 |
2.2*3.1*1.37 |
2000 |
|
DGP-160 |
90 |
2.2 |
2.2 |
1000-1200 |
2.3*3.15*1.38 |
2500 |
|
DGP-200 |
132 |
3 |
3 |
1800-2000 |
2.35*3.45*1.65 |
3200 |
Details Images

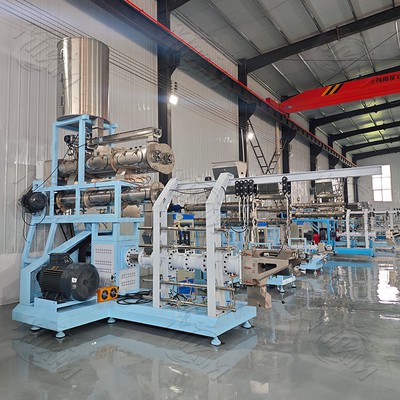

Wet Single Screw Extruder Machine
Wet Single Screw Feed Machine Fish Feed Extruder Machine, also called floating fish feed machine, is widely used for produce high-grade aquatic feed pellets for fish, catfish, shrimp, crab, lobsters, etc.We have two types of fish feed extruder, dry type and wet type model fish feed machine, through feeding materials, extruding,Forming,Filling and cutting, drying, oil spraying, packing to produce floating and sinking fish feed pellets automatically,Moreover, you can change extrusion degree to influence floating time.
Wet type equipment Feature:
|
Model
|
Capacity
(kg/h)
|
Main motor
(kw)
|
Feeder motor
(kw)
|
Screw diameter
(mm)
|
Cutter motor
(kw)
|
Machine size (m)
|
Weight
(kg)
|
|
D-LX-65
|
180-200
|
15
|
0.4
|
φ60
|
0.4
|
1.78*1.25*1.3
|
480
|
|
D-LX-70
|
250-300
|
18.5
|
0.75
|
φ70
|
0.55
|
2.46*1.55*1.74
|
940
|
|
D-LX-80
|
350-400
|
22
|
1.1
|
φ80
|
0.55
|
2.65*1.45*1.75
|
1000
|
|
D-LX-90
|
500-600
|
37
|
2.2
|
φ90
|
1.5
|
2.6*2.1*1.9
|
2000
|
|
D-LX-100
|
700-800
|
55
|
2.2
|
φ100
|
1.5
|
3.2*1.95*1.9
|
2200
|
|
D-LX-135
|
1000-1200
|
75
|
2.2
|
φ135
|
2.2
|
3.57*1.98*1.8
|
2500
|
|
D-LX-145
|
1800-2000
|
90
|
3
|
φ145
|
3
|
6.6*2.8*2.33
|
3800
|
|
D-LX-175
|
3000-4000
|
132
|
3
|
φ175
|
3
|
6.6*2.9*2.35
|
4500
|

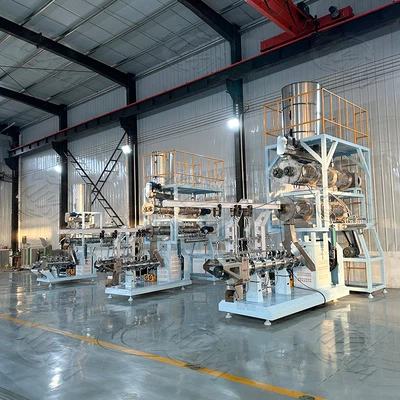

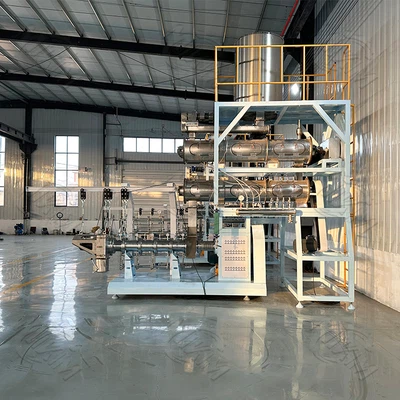

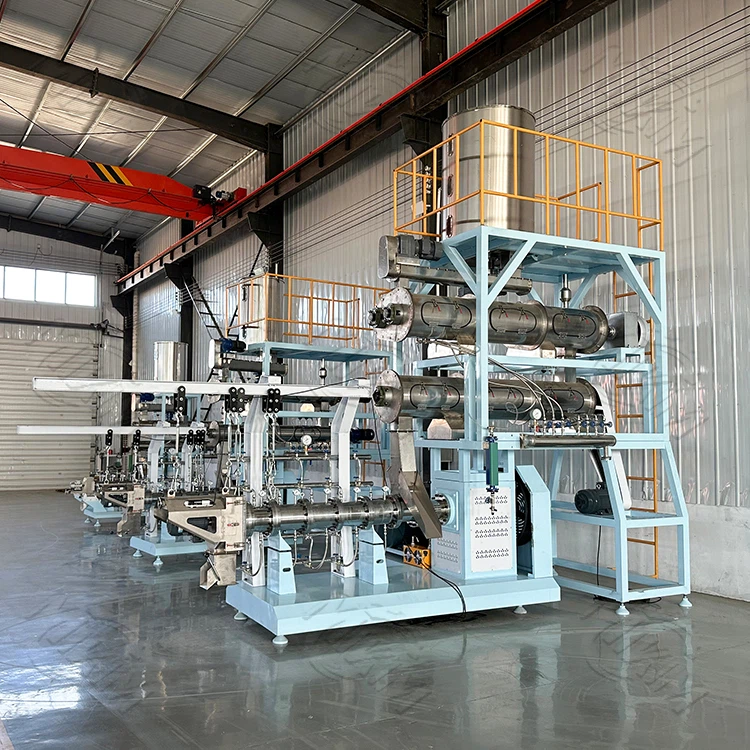

Wet Twin Screw Extruder Machine
Wet Type Steam Twin Screw Fish Feed Extruder Machine, also called floating fish feed machine, is widely used for produce high-grade aquatic feed pellets for fish, catfish, shrimp, crab, lobsters, etc.We have two types of fish feed extruder, dry type and wet type model fish feed machine, through feeding materials, extruding,Forming,Filling and cutting, drying, oil spraying, packing to produce floating and sinking fish feed pellets automatically,Moreover, you can change extrusion degree to influence floating time.
Wet type equipment Feature:
|
Model |
Capacity |
Power |
Conditioner |
Weight |
|
65 |
0.3 T/H |
22 KW |
3.0 KW |
0.75 KW |
|
70 |
0.5 T/H |
37 KW |
3.0 KW |
1.1 KW |
|
80 |
0.8 T/H |
55 KW |
5.5 KW |
1.5 KW |
|
85 |
1.0 T/H |
75 KW |
7.5 KW |
2.2 KW |
|
90 |
1.5 T/H |
90 KW |
11 KW |
3.0 KW |
|
120 |
2.0 T/H |
110 KW |
15 KW |
3.0 KW |
Final Product Display
We have a variety of mold shapes for you to choose from.
The coal rod machine is a coal rod forming equipment that compresses the modulated pulverized coal into a predetermined shape with strength by using the principle of screw extrusion. Its working principle is: the motor transmits power to the transmission through the V-belt, the transmission output shaft transmits power to the propeller shaft through the floating coupling, and the propeller on the propeller shaft pushes the coal material through the forming die head to produce an ideal high-pressure coal rod. The coal rod extruder adopts a hard-toothed reducer with small size and high load-bearing capacity.
|
Model |
MK-180 |
MK-210 |
|
Model size |
30-60mm |
30-80mm |
|
Dimension(m) |
1.6*1.1*1.3 |
1.9*1.4*1.45 |
Biomass briquette machine shows the features of high capacity, low energy consumption, compact and durable. Many performance data such as capacity, wood briquettes density, electricity consumption and wearable degree has reached advanced level. Charcoal briquette machine can be used as charcoal powder briquette machine by replacement of some spare parts. The out diameter of finished briquettes is 50mm/80mm.
During this process, no binder need to be used. So the output briquette is a type of clean and green fuel that is ideal for use in furnaces, boilers and open fires.
Application for Charcoal Briquette :
Used as bio fuels for boiler
For Stove, Home heating
Used BBQ charcoal for Barbecue
Fuels for Europe country Fireplace etc.
|
Model |
Capacity |
Weight |
|
BC-50 |
200-250 kg/h |
550 kg |
|
BC-80 |
250-300kg/h |
700kg |
3.(3)Carbonization furnace
Carbonization furnaces are also products of MIKIM. We have continuous carbonization furnaces, horizontal carbonization furnaces and suspended carbonization furnaces. You can choose according to your own needs.
The continuous carbonization furnace has high production efficiency. As the name suggests, the continuous carbonization furnace is continuous carbonization. It can produce continuous carbonization 24 hours a day and can carbonize several tons to dozens of tons of raw materials a day.
The design of the horizontal carbonization furnace realizes a continuous production method and effectively improves production efficiency. When the equipment is running, its high-capacity, continuous operation characteristics can significantly reduce the operating time and downtime of a single equipment. The horizontal carbonization furnace adopts advanced heat energy recovery technology, which effectively improves the utilization rate of heat energy and reduces energy consumption. This can not only save energy costs for enterprises, but also contribute to environmental protection.
The hoisting carbonization furnace is mainly composed of a furnace body, a furnace cover, a heating furnace, a coking template, a thermometer, and an electronic control system. Among them, the furnace cover and furnace door adopt a sealed structure to ensure high temperature and oxygen-free conditions during the carbonization process. The working principle of the hoisting carbonization furnace is to heat wood and other organic substances to high temperatures under limited air contact, causing them to decompose under high temperature and anaerobic conditions, removing oxygen, moisture and impurities, and converting them into solid Carbon material. Compared with traditional carbonization methods, the hoisting carbonization furnace has the advantages of short carbonization time and high equipment efficiency.
|
Model |
Capacity (kg/h) |
Power |
Dimension |
|
800 |
250-300 |
15kw |
Diameter.80* Length 800cm |
|
1000 |
500-600 |
22kw |
Diameter 100* Length 1000cm |
|
Model Name |
Capacity |
Mainly Included Parts |
Shipping |
|
QHL-1 |
2-3ton/24hour |
1outer stove+3 inner pot |
LCL |
|
QHL-2 |
5-6ton/24hour |
2outer stove+6 inner pot |
FCL 1*20GP |
|
Serial number |
Liner size |
Outside size |
Weight (kg) |
Output (kg) |
Volume m³ |
|
1 |
Ф0.8*1.5(m) |
Ф1.8*1.1*1.4(m) |
350 |
100 |
0.76 |
|
2 |
Ф1*1.5(m) |
Ф1.6*1.1*1.8(m) |
500 |
260 |
1.177 |
|
3 |
Φ 1*3(m) |
Ф1.5*3.3*2(m) |
850 |
400 |
2.355 |
|
4 |
Ф1.5*3(m |
Ф3.3*1.8*2.5(m) |
1377 |
600 |
5.3 |
|
5 |
Ф1.5*3.8(m) |
Ф1.9*2.5*4(m) |
2000 |
800 |
6.7 |
4.(1)Vegetable dicer
High-speed dicing machine is suitable for food processing plants, catering industry, canteens, and the whole machine is made of 304 stainless steel.
1. The knife disc is easy to clean and replace, and the operation is simple.
2. The cutting speed can be adjusted through the electric control panel. Mainly used for dicing and cutting root vegetables and fruits.
Root vegetables: potatoes, radishes, sweet potatoes, eggplants, onions, taro, ginger, pumpkin, winter melon, etc. and apples, yellow peaches, peaches, cantaloupes, dragon fruits, kiwis and other fruits and vegetables are cut into dices. The cutting size can be customized according to needs. It is suitable for fruit and vegetable processing plants, central kitchens, catering chain distribution centers, and large canteens.
● There is a micro switch at the feeding point for safe operation;
● It can be cut into strips (wires) through simple modification;
● The dicing speed is fast, which can match the workload of 35-40 people in the same time.
● Three-dimensional cutting principle, smooth and flat cut surface.
● It does not destroy the material organization and does not affect the taste.
|
Model |
Power(kW) |
Cut Size(mm) |
Dimensions(mm) |
Capacity(kg/h) |
Weight(kg) |
|
MK500 |
1.5 |
5/8/10/12/15/20/25 |
1750*1250*1600 |
800-3000 |
282 |
|
MK1500 |
1.5 |
5/6/8/10/12/15/20 |
1370*1070*1250 |
2000-3000 |
300 |
|
MK800 |
0.75 |
4/5/3/7/1 |
900*710*1260 |
300-1000 |
102 |
4.(2)Meat cutting machine
This machine is suitable for chicken and duck, small and medium-sized animal bones, spareribs, frozen meat, fresh meat, frozen chicken, chicken legs and other processing equipment, according to the needs of cutting pieces, sections, strips, shape and size can be adjusted.
This machine is cost-effective, saving labor, one machine can work for more than 500 kg per hour, greatly improving production efficiency, widely used in large and medium-sized food processing plants, collective canteens, slaughterhouses, meat processing plants, supermarkets, restaurants, etc.
1. fully automated mode of operation.
2. the plane fuselage design, all stainless steel sealing plate, is in line with food hygiene and easy to clean.
3. stainless steel doors, special surface treatment, easy to clean and maintain.
4. thickness adjustment board to enhance the design, easy to adjust the processing thickness.
5. the machine is equipped with safety strut design to improve work safety.
6. the machine is waterproof, easy to clean, safe and hygienic.
7. The machine has the advantages of compact structure, beautiful appearance, simple operation, high efficiency, low power consumption, easy cleaning and maintenance, good osteotomy effect and so on.
|
Model |
CM-600 |
|
Voltage |
220V |
|
Power (kw) |
2.2kw / 3kw |
|
Capacity (kg/h) |
600 kg/h |
|
Dimension(cm) |
130*70*85 cm |
|
Weight (kg) |
260 kg |
|
Cutting cube size(mm) |
20*50mm |
4.(3)Food extruder machine
These snacks can be made from a variety of grains such as corn, wheat, rice,oats, and potatoes, and are available in various shapes and flavors. One of the most popular puff snack food is corn puffs.
Corn puff extruder machines are essential equipment for making corn puff snacks. These extruders use the process of extrusion to transform corn meal into corn puff snacks. The extrusion process produces puffed snacks that are crispy and crunchy, and have a unique texture and flavor.
1.This snack extruder making machine can be used for different areas such as people food industry, pet food industry etc.
2.Through friction of screw and barrel, the grains are cooked in the extruder. Forming is at the die face cutter. The product shape is determined by a combination of the die aperture, including ball, tube, stick, ring, fruit loop, star, wheel and flower etc.
3. This corn puffing machine is with slight weight, compact structure, easy to be operated.
4. It is a new type and suitable for rice, maize, sorghum, yellow rice, flour and so on.
5. This corn snack food extruder can produce different shapes with different moulds such as cylinder shape, round sphere, millet beautiful form, lotus root shape and various shapes.
6. Final rice or corn puffed produce can be flavored by way of adding food safe additive, such as Sodium cyclamate, salt, spice, or others.
|
Model |
Capacity |
Power |
Weight |
Dimension |
|
MK-40 |
40-50KG/H |
5.5KW |
310KG |
1300*1200*1100MM |
|
MK-50 |
80-100KG/H |
7.5KW |
330KG |
1350*1100*1200MM |
|
MK-60 |
120-150KG/H |
15KW |
360KG |
1350*110*1200MM |
|
MK-90 |
400-500KG/H |
30KW |
800KG |
1650*1450*1300MM |
4.(4)Peanut butter machine
Working Principle :
The basic principle of colloid mill machine is that the fluid or semi-fluid material is subjected to strong shear force, friction force and high-frequency vibration through the fixed and moving teeth which are relatively connected at high speed. Grinding on mill tooth profile incline relative motion but becomes, one of the high speed rotating, another still make material through between tooth bevel material by shear force and friction force, at the same time in the high frequency vibration and the high speed whirlpool, etc under the action of complex force effectively shatter, emulsion, homogeneous, temperature, to obtain satisfactory fine processing of the products.
Scope of application:
(1) Various nuts: such as Peanuts, Sesame, Almonds, Cocoa, Cashew, Soya beans, Corn, Hazelnut , Pistachios, Macadamia nuts, etc.
(2) Vegetables and fruits: Chili, Garlic, Ginger, Onion, Tomato, Potato, Banana, Apples, etc.
(3) Meat : Chicken, Fish, Bone mud, etc.
The standard type machine material : All the parts connecting with raw material are Stainless Steel , Stator and Rotor parts are SS 420. Other parts are Carbon steel. The machine material can be customized to 304 stainless steel or 316 Stainless Steel.
|
Model |
Power |
Capacity |
Fineness |
Weight |
Machine Size |
|
50 |
1.5kw |
10-15 kg/h |
50-100 mesh |
50 kg |
530*260*580 mm |
|
80 |
4kw |
60-80 kg/h |
80-150 mesh |
150 kg |
600*410*930 mm |
|
110 |
7.5kw |
100-200 kg/h |
80-150 mesh |
175 kg |
700*430*1000 mm |
|
130 |
11kw |
300-500 kg/h |
80-200 mesh |
285 kg |
990*440*1000 mm |
|
160 |
15kw |
500-600kg/h |
80-200 mesh |
300kg |
1000*460*1050 mm |
|
180 |
18.5kw |
700-800 kg/h |
80-200 mesh |
375 kg |
1000*490*1100 mm |
|
210 |
30kw |
1000-1200kg/h |
80-200 mesh |
700kg |
1260*600*1230 mm |
|
240 |
45kw |
1200-1500 kg/h |
100-200 mesh |
920 kg |
1330*630*1280mm |
|
300 |
75kw |
3000-4000 kg/h |
100-200 mesh |
1300 kg |
1500*800*1120mm |
4.(5)Meat slicer machine
Mutton slicer 16 rolls, 8 rolls, 4 rolls, 2 rolls, 1 roll are available for sale, double layer stacking, touch screen operation, PLC control, servo motor drive, double screw horizontal feed, cutting height up to 26 cm, fully automatic operation
CNC frozen meat slicer suitable for all kinds of meat can be cut, suitable for large and medium-sized meat processing enterprises. It adopts electric pusher, electric presser, electric adjustment thickness, stepping pusher, meat processing, and the cutter automatically stops. The pusher plate automatically retreats, automatically stops, and the cutter opens. The conveyor belt is automatically synchronized, and the protective door is automatically turned off to ensure personal safety. High degree of automation, meat slice cutting, thickness adjustment, meat roll delivery, automatic shutdown, can be completed with one button, saving labor and time.
|
Model |
MS-10 |
MS-20 |
MS-40 |
MS-60 |
MS-80 |
|
Slicer rows |
1 roll |
2 roll |
4 roll |
6 roll |
8 roll |
|
Frequency |
60 times/min |
60 times/min |
60 times/min |
60 times/min |
60 times/min |
|
Power |
0.55kw |
1.5kw |
2.2kw |
3kw |
4kw |
|
Capacity |
20-30kg/h |
75-100kg/h |
150-200kg/h |
220-300kg/h |
300-400kg/h |
|
Height of slice |
10-150mm |
10-160mm |
10-160mm |
10-160mm |
10-160mm |
|
Thickness of slice |
0.2-10mm |
0.2-10mm |
0.2-10mm |
0.2-10mm |
0.2-10mm |
|
Processing length |
600mm |
600mm |
600mm |
600mm |
600mm |
|
Szie (mm) |
950*350*400 |
1450*600*1300 |
1450*880*1300 |
1500*1100*1400 |
1500*1300*1400 |
|
Weight(kg) |
80kg |
240kg |
330kg |
410kg |
500kg |
The oil pressers has the advantages of small footprint and high efficiency. It has the advantages of exquisite material selection, reasonable structure, beautiful appearance, reliable quality, simple operation, labor and power saving, etc., with automatic temperature control, one-time squeezing, and oil yield High, centrifugal filtration and other advantages. The oil press can be used for multiple purposes, processing more than 20 kinds of oils such as sesame, peanut, rapeseed, tea seed, soybean, oil sunflower, flax, cottonseed, corn, walnut and so on. The squeezed oil from grades 4-6 is vacuum filtered and centrifugal filtered, fragrant and attractive, crystal clear and pure, safe and sanitary, and can be eaten directly or sold in bottles.
|
Models |
MK50 |
MK60 |
MK65 |
MK80 |
MK120 |
|
Power |
4kw |
Main engine |
2.0 kw |
3kw |
3.5 kw |
|
Vacuum pump |
6x-30kw |
4x-3kw |
6x-5.5kw |
6x-7.5kw |
6x-11kw |
|
Heater |
5kw |
2.0kw |
3kw |
3.5kw |
4kw |
|
capacity |
450-550kg/h |
40-50kg/h |
80-160kg/h |
150-260kg/h |
260-400kg/h |
|
Whole weight |
1550kg |
270kg |
550kg |
760kg |
915kg |
|
Outside dimension |
2450*1980*1770mm |
1350*950*1170mm |
1700*1300*1600mm |
2000*1350*1750mm |
2050*1400*1800mm |
Large scale crude oil extraction machine is mainly used in the middle and large scale oil mill plants for vegetable seed.These large oil presses are generally divided into two kinds: oil press for hot pressing, and low temperature oil press for cold pressing. The large scale oil press extraction machines we supply is suitable for extraction of vegetable oils from oil bearing seeds and nuts, such as rapeseeds, grounnut, sesame seeds, cottonseeds, soybean seeds, corn germ, copra, sunflower seeds, etc.
Soybean/sunflower oil solvent extraction plant machine and cooking oil manufacturing machine:
1.to reduce wear and tear on the follow-up equipment, improve environmental quality workshop;
2. improve equipment production, improve oil yield, to ensure maximum quality fat, meal and byproducts;
3.the lowest rate of fuel crushing, destructive for protein meals minimum.
|
Model |
capacity(KG/D) |
weight(KG) |
packing size(MM) |
Power(kw) |
|
MK50D |
500 |
140 |
1500*680*1400 |
5 |
|
MK75D |
2000 |
280 |
3000*830*1700 |
15 |
|
MK75C |
2500 |
350 |
3900*830*1700 |
20 |
The shaving machine consists of a frame, an operating table placed on the frame, and a blade fixed on the operating table. The wood raw material is fed into the machine from the feed port, cut by the blade in the cavity, and finally processed into shavings, just like a worker doing manual work.
The shaving machine is mainly used for shaving composite boards, furniture manufacturing, raw materials for making wood pulp paper, bedding for family pets, keeping warm in winter hatching and breeding farms, transporting fragile fillers, preventing extrusion, etc. In addition, it can also be used to ignite bioenergy.
|
Model |
Power |
Capacity |
Inlet size |
Blade |
Dimension(m) |
Weight |
|
B-420 |
7.5 / 11 |
0.3~0.8 |
15*15 cm |
3 Pcs |
1.2*0.5*0.7m |
160 kg |
|
B-600 |
15 |
1~1.5 |
18*18 cm |
3 Pcs |
1.5*0.6*1.1 m |
320kg |
|
B-700 |
22 |
1.5~2 |
20*20 cm |
3 Pcs |
1.55*0.7*1.15 m |
450kg |
|
B-800 |
30 |
2~3 |
22*22 cm |
4 Pcs |
1.90*0.8*1.3 m |
600kg |
|
B-1000 |
37 |
4~6 |
25*25 cm |
4 Pcs |
2.05*0.9*1.6 m |
800kg |
|
B-1200 |
55 / 75 |
6~8 |
33*33 cm |
4/6 Pcs |
2.6*1.2*1.8 m |
1100 kg |
|
B-1500 |
90 / 110 |
10~15 |
40*40 cm |
4/6 Pcs |
2.9*1.4*2.4 m |
1800 kg |
Compact structure, simple operation, the disc wood chipper has a wide application for wood logs, wood timbers, wood planks processing.
Adopting the unique disc blades layout, the disc wood chipper is widely used for premium wood chips processing.
The chipper body is made of high strength steel, firm, shock-resistant, with less noise.
Special design and reliable blades layout, the disc wood chipper works more efficiently. The wood chips is of even length and uniform thickness.
Scientific overall design scheme, the disc wood chipping works efficiently and is easy to take care and repair.
|
Model |
Diameter(mm) |
Size of inlet(mm) |
Quantity of blades |
Working capacity(t/h) |
Power |
Rotating speed |
|
AC-500 |
1500*650*850 |
200*180 |
4 |
1-2t/h |
15 |
2200r/min |
|
AC-600 |
1500*700*1000 |
230*210 |
4 |
2-3t/h |
18 |
2200r/min |
|
AC-700 |
1550*750*1050 |
240*240 |
4 |
2.5-3t/h |
22 |
2100r/min |
|
AC-800 |
1600*800*1100 |
260*260 |
4-6 |
3.5-4t/h |
37 |
2000r/min |
|
AC-1000 |
2000*1100*1300 |
300*300 |
4-8 |
4-5t/h |
45 |
2000r/min |
The mobile wood chipper produced by MIKIM factory is widely used in garden, forest, road trees protection, park, golf course etc.
department, mainly used for grinding the kinds of branches cut off form the trees, then the particles we get can use as slipcover, garden bed base, , Edible fungus, Biomass power generation, and also can produce high density board, particle board, paper industry, etc. the particles can spray directly to the transportation car after shredding ,the volume of the delivery car is 10 times of the original branch transportation volume. And also this garden shredder can grind the tree branches any time anywhere, much more convenient.
Application of the Final Products:
1.Organic fertilizer: free decay into surface can be formed a good organic fertilizer.
2.Flower potting soil packing: coverage of bare soil to prevent dust purification air organic fertilizer additive
3.Mushroom cultivation base: apply to all kinds of mushroom cultivation recycling.
4.Animal feed: freshwater fish or natural organic pollution of plant-eating animal feed.
5.It can also be used in landscaping, paper mill, charcoal mill, feed mill, wood-based board factory, incense factory and so on .
|
Mobile wood chipper |
||
|
Model No. |
AK-6130D |
AK-6130 |
|
Engine type |
Diesel engine |
Motor |
|
Power |
28 HP |
22 KW |
|
Cutter drum Dia. |
300 |
300 |
|
Start way |
Electric start |
Air switch |
|
Speed |
2600 |
2900 |
|
Blade |
3 |
3 |
|
Feed press roller Dia. |
280 |
280 |
|
Feed roller power |
hydraulic |
hydraulic |
|
Feeding size (mm) |
300*200mmm |
300*200mm |
|
Tires |
165/70r13 |
165/70r13 |
|
Discharge Direction |
360° |
360° |
The dung spreader is equipped with a high-speed rotating crushing wheel, which can spread the fertilizer quickly and evenly to ensure uniform fertilization.
The spreading width of the dung spreader can cover 8-12 meters, which is suitable for large-scale fertilization.
The walking mechanism of the dung spreader adopts a rigid half-axle independent suspension, which can adapt to different terrains without damaging the ground.
The dung spreader is easy to operate, reduces labor intensity and improves labor efficiency.
The dung spreader is suitable for farms, orchards, grasslands, pastures and other places, and can be used to spread farmyard manure, organic fertilizer, chemical fertilizer, etc. It can spread fertilizer evenly, increase crop yields, improve soil quality, reduce labor intensity, and save labor costs.
|
Model |
auxiliary power |
Width of spread |
|
5500 |
30-60hp |
8~12 |
|
5500A |
30-60hp |
8~12 |
The potato traction harvester can complete the harvesting of a large area in a short time, greatly improving the harvesting efficiency and reducing the manpower and time costs.
Since the potato traction harvester adopts a mechanized harvesting method, it can effectively avoid the damage to potatoes during manual harvesting, thereby ensuring the stability of the harvesting quality.
It can effectively reduce the cost of labor and machinery maintenance, improve agricultural production efficiency, and play a positive role in promoting rural economic development.
Its advantages of high efficiency, stable quality and cost saving make it have a wide range of application prospects in the market.
|
Operating range (cm) |
90 |
|
Transportation clearance (mm) |
≥300 |
|
Operating hourly productivity (h㎡) |
≥0.17 |
|
Excavator type |
flat shovel |
|
Working depth(cm) |
150-250 |
Why choose us?
Our factory covers an area of more than 3,000 square meters and has more than 150 employees. We have enough professional technicians and quality teams to serve you, and have passed CE, ISO and other certifications.
Our after-sales service is perfect. We provide you with technical support, including installation training and post-maintenance. If you encounter any problems during use, we can video call. If necessary, we will send professional technicians to your country to solve the problem for you. At the same time, we will provide you with a batch of wearing parts to ensure the service life of the equipment.
