Tianjin Mikim Technique Co., Ltd. is one of the most experienced manufacturers and suppliers of biomass wood pellet machines in China. If you're going to buy cheap biomass wood pellet machines made in China, welcome to get more information from our factory. All our products are with high quality and low price.

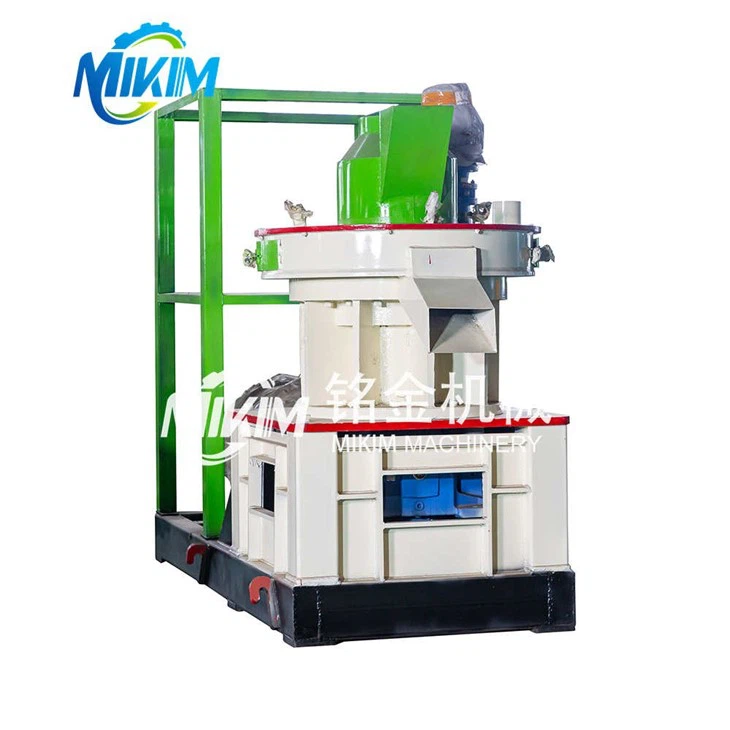

Biomass wood pellet machines
Biomass Wood pellet mill machine, also called pellet press,is a key equipment which is used in biomass wood pellet plant.
Rotexmaster biomass pellet machine belongs to vertical ring type pellet processing equipments.
When working , the die is static, roller is rotation and produces pressure to force loose material through the holes of die.
This kind pellet mill machine is mainly designed for press soft and hard wood into biomass pellets without adding any additives.
Biomass wood pellet machines
|
Model |
Power (kw) |
Capacity(kgs/h) |
Weight(kgs) |
Dimension(mm) |
|
560 |
90+1.5+0.37+1.5 |
1000-1500 |
6100 |
2600x1300x2300 |
|
6th560 |
132+1.5+0.37+1.5 |
1500-2000 |
4600 |
2600x1250x1600 |
|
850 |
220+3+0.37(0.55)+2.2 |
2000-3000 |
14500 |
3300x1400x3100 |
|
6th850 |
220+3+0.37(0.55)+2.2 |
2500-3500 |
9600 |
2600x1600x1950 |
automatic ring die wood sawdust pellet making mill
Features
Stainless steel ring die
Stainless steel whole carburizing die,high wear resistance, good stability,discharge area increase,enhance capacity and reduce cost.Double layer, both side can be used, reduce the cost.
Casted gearbox with high stability
Gearbox body is casted. Its advantages has strong,good heat dissipation,low heat deformation, high steady etc. Avoid disadvantages of the bad sealing for welding boby, easily deformation due to high heat,low steady in basis etc.
Roller wrap
Roller without lock, less grease consumption, extended bearing life.
Automatic lubrication system
Reducer and main shaft bearing chamber adopts loop closed industrial gear oil lubrication,make lubrication effect more outstanding,reduce the cost of traditional grease lubrication, add a circulating waste cooling oil temperature cooling device, reduce the oil temperature in reducer ,protect bearings.
