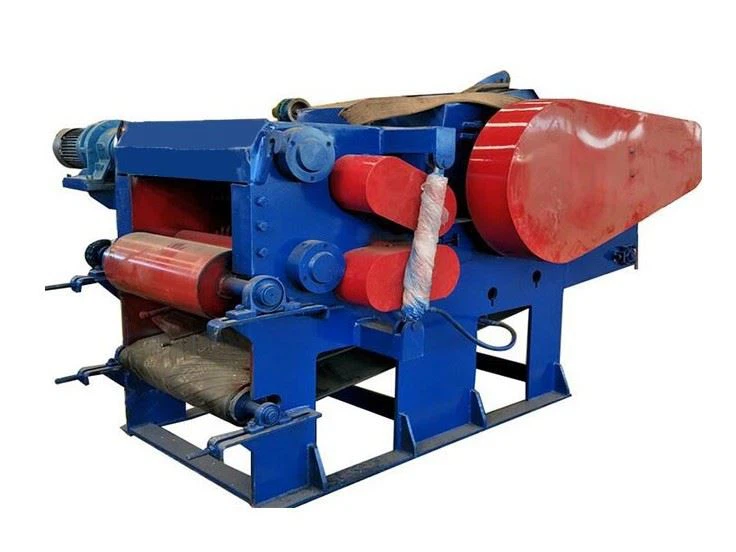

High Quality Drum Wood Chipper Machine
Tianjin Mikim Technique Co., Ltd. is one of the most experienced manufacturers and suppliers of high quality drum wood chipper machine in China. If you're going to buy cheap high quality drum wood chipper machine made in China, welcome to get more information from our factory. All our products are with high quality and low price.
Description
high quality Drum Wood Chipper Machine for producing wood chips which is wiely used in the raw material preparing process in the factories of flakeboard,fiberboard,papermaking and wood chips making plants,with the advantage of low investment,low energy consumption,high efficiency,easy to maintain,which is the best way to get rich for developing such machines.
Parameter
Model | CRS-C215 | CRS-C216 | CRS-C217 | CRS-C218 |
Blade dia.(mm) | 500 | 650 | 650 | 800 |
Qty. of blade(pcs) | 2 | 2 | 2 | 2 |
The rotating speed of blade plate(r/min) | 592 | 590 | 590 | 650 |
Feed size(mm) | 180×400 | 240*540 | 240*680 | 310*680 |
Max material Dia.(mm) | 160 | 220 | 220 | 300 |
Structure
The high quality Drum Wood Chipper Machine is composed of body, knife roller, upper and lower feeding mechanism, hydraulic system, feeding device and other parts.
1. Body: welded with high-strength steel plates, it is the support base of the whole machine.
2. Knife roller: Two or three or four flying knives are installed on the knife stick, and the flying knives are fixed on the knife roller through the pressure block with specially manufactured flying knife bolts.
3. high quality Drum Wood Chipper Machine Hydraulic system: The oil pump is supplied to the oil cylinder, and the cover can be activated to facilitate the replacement of the blade; during maintenance, the upper feeding roller assembly can be lifted to facilitate the adjustment of the gap between the flying knife and the bottom knife and the disassembly and assembly of the comb plate.
4. high quality Drum Wood Chipper Machine Upper and lower feeding mechanism: It is composed of feeding interface, upper and lower feeding rollers and feeding gap adjustment mechanism. The wood entering from the feeding interface is pressed by the upper and lower feeding rollers, and is fed to the cutting mechanism at a certain speed. Control the size of the cutting wood chips; when processing thick wood, it is adjusted by the feeding gap adjustment mechanism.
