Poultry feed production line
A complete set of equipment in a feed processing plant's production line is the core of achieving large-scale, standardized production. The entire process, from raw materials to finished product, relies on the coordinated operation of various supporting equipment.
1. During the raw material pretreatment stage, a vibrating grading screen can classify raw materials by particle size, with a mesh accuracy of up to 0.5mm, suitable for raw materials such as corn and soybean meal. The accompanying permanent magnet drum's strong magnetic field attracts impurities such as iron filings, preventing damage to subsequent equipment. The bucket elevator utilizes a food-grade belt, achieving a conveying capacity of up to 50 tons per hour, and its enclosed design reduces material spillage.
2. In the pulverization process, the high-efficiency hammer mill is equipped with 60 wear-resistant hammers, allowing for adjustable particle sizes between 0.8 and 3mm. A negative pressure ventilation system ensures smooth, clogging-free discharge. The ultrafine pulverizer can grind raw materials to a size of 80-200 mesh, meeting the requirements of high-end aquatic feed. Its water cooling system controls the pulverization temperature and preserves the nutrients in the raw materials.
3. In the mixing system, a twin-shaft paddle mixer utilizes differential-speed mixing technology, resulting in fast mixing time and high uniformity. The liquid addition system precisely injects oils, amino acids, and other ingredients with minimal metering error, ensuring nutritional balance.
4. In the pelletizing and post-processing equipment, the ring die pelletizer rollers feature an automatic lubrication system, reducing maintenance costs. The cooler's multi-layer louver design shortens pellet cooling time and keeps moisture content below 12%. The pellet grading screen's three-layer screen simultaneously separates coarse particles, finished products, and fine powder, achieving a grading efficiency of 98%.
This equipment utilizes an intelligent control system to coordinate the entire process, enabling one-button start and stop operations, reducing manual intervention and lowering energy consumption compared to traditional equipment. It is an ideal choice for feed mills to improve production capacity and quality.
| Capacity | 15-20t/h |
| Range of application | large commerical feed factory,could make chicken,sheep,cow,shrimp feed |
| Workers requirments | 4-5 people |
| Shipment requirments | 6*40ft container |
| Product advantages | Fully automatic intelligent batching, computer control system with stable output, efficient and continuous operation, labor saving, direct packaging, particle size can be selected from 1-12mm. |
| size for whole line |
According to land size and layout |
Hammer Mill
Feed grinder is a special equipment used to process crop straw, grain, soybean meal and other raw materials into powdered feed. It belongs to the category of crushing machinery and is mainly used in feed processing, biomass energy and straw comprehensive utilization.
Screw Conveyor
Used for conveying grain and powdery raw materials, sealed structure, reliable, clean, hygienic, no residue.
Stainless Steel Mixer
Stainless steel mixer is suitable for mixing powdered raw materials, with high efficiency and fast mixing speed, suitable for small-scale feed.

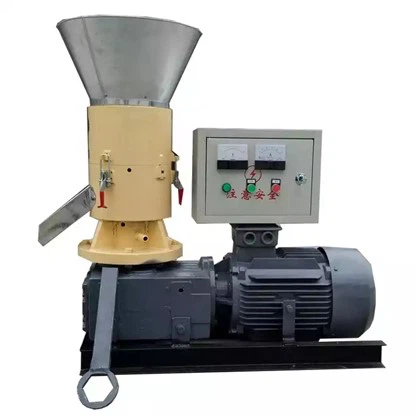

Feed Pellet Machine
Feed pellet machines are widely used in large, medium and small livestock and poultry farming. They can produce feed pellets of various specifications with simple structure, wide adaptability, small footprint and low noise.
cooler
Feed cooler is a cooling equipment that adopts the countercurrent cooling principle. The particles are cooled fully and evenly. It runs smoothly and discharges smoothly.
packer
The device mainly consists of three parts: automatic weighing and packaging machine, conveying device and sewing device. It is mainly suitable for quantitative packaging of granular and granular powder mixed materials.
Finished product display
Is the supplier reliable?
When choosing feed processing line equipment, you need to pay attention to the quality of the equipment and after-sales service.
Whether it is a new construction or expansion project, or the upgrading and renovation of existing facilities, MIKIM can use its rich processing expertise and experience to meet your specific requirements at the lowest total cost of ownership.
We will customize it according to your feed type, raw materials, formulation, plant area, production capacity, etc.
No matter how special your raw materials are, no matter how limited your plant space is, our engineers can realize the most suitable design to meet your feed processing needs.
For more information on process design, equipment layout, plant construction plan, single machine equipment quotation, turnkey quotation. Please feel free to contact us.
