Tianjin Mikim Technique Co., Ltd. is one of the most experienced manufacturers and suppliers of High Efficient Biomass Wood Pellet Machine in China. If you're going to buy cheap High Efficient Biomass Wood Pellet Machine made in China, welcome to get more information from our factory. All our products are with high quality and low price.

Product Details of Pellet Machine

Name: China High Efficient Biomass Wood Pellet Machine Manufacturers, Factory - Low Price - Mikim
Brand: MIKIM
SKU: 214390968

Tianjin MIKIM as a leading manufacturer of wood pellet making machine(like vertical pellet mill, horizontal pellet pelletizer, flat die pellet granulator, ring die pellet machine, biomass pellet machine), complete wood pellet plant and other related equpment for pelleting wood and agricultural waste. Over 10 years of experience in equipment manufacturing and project constraction has proved our strong ability and great product quality.

electric flat die pellet mill Biomass fuel pellet machine

biomass wood Pellet mill

Pellet machine is used to develop the moist powder into required pellets, also can crush the block dry material into required pellets. The main feature is that the screen mesh is easy to install and disassemble, and can also be adjusted appropriately to loosen and tighten, easy to disassemble, easy to clean.

Pellet machine can be divided into two series, flat die pellet mill and ring die pellet mill, the two types are not divided into good and bad, for different needs can choose different products.And both pellet machines can produce feed or biomass fuel

Ring Die pellet machine

The working principle of the ring die pellet mill is that its mold is a porous cylinder that rotates by transmission. There are 2-4 free rotating or transmission self-rotating rollers with grooves in the cylinder. The raw material enters and enters into the mold, after that it is embedded in the mold holes and extruded from the outer wall of the steel mold and cut into cylindrical pellets by the cutter. The main point of the machine is that: on the ring die and on the pressure rollers, the linear velocity is equal everywhere. There is no additional friction, all All the pressure is used for pelletizing, so the efficiency is high.

Flat Die pellet machine

Flat die pellet mill and its working principle. Its main parts are a flat round steel mold and a set of freely rotatable grooved rollers. The raw material falls into the gap between the rollers from top to bottom, and is pressed into the mold hole by the rotating rollers, and the long cylindrical object is extruded from under the mold hole and cut into pellets by the cutter.
Flat die pellet mill features simple structure, easy to manufacture, low cost, suitable for pressing fibrous raw materials. And the linear velocity (circumferential velocity) of the inner and outer diameters of the flat die are not equal because the raw materials on the die are subjected to different centrifugal forces, which makes the load on the working surface uneven. So the diameter of the flat mold can not be too large, otherwise it will affect the uniformity of the finished product.

Ring Die Pelletizing machine

The output of ring die Pelletizing machine can do from 0.7-4T/h.

Model	Capacity	Power	particle size	Product Size	Weight
MKLH560	1-1.5T/H	90KW	4-12MM	262016401770MM	5.2T
MKLH560A	1.5-2T/H	132KW	4-12MM	268015601770MM	5.6T
MKLH700	2-2.5T/H	160KW	4-12MM	256013802020MM	7.2T
MKLH860A	3-4T/H	250KW	4-12MM	315015502240MM	9.5T

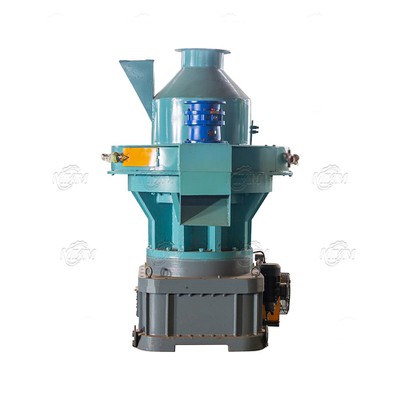

Vertical ring die pellet mill machine vertical ring die pellet machine

ring die Biomass pellet machine

Various Kinds of Mateirals Suitable for Making Pellets

☑ Wooden Materials:log, tree branch, wood chips/bricks/blocks, wood shavings, sawdust, white/Korean pine wood, paulownia, poplar, white/red oak tree, pinus sylvestris, eucalyptus, beech, spruce, palm tree, palm fiber, palm empty fruit bunches (efb) etc;

☑ Agricultrial Wates: Sugarcane bagasse, rice husk, corn stalk, pineapple peel, rape straw, paddy straw, hemp straw, cotton rod, corn cob, peanut shells, groundnut hull, coffee husk, sunflower seed husk, oat husk, coconut shell, coir pitch, etc.

☑ Energy Plant: Elephant grass, nipier grass, merker grass, pennisetum, bamboo

☑ Others: bentonite, slime, leaves, charcoal powder, carbon black, peat, paper, cardboard, waste newspaper, olive pomace

The advantages of Wood chip pellet machine:

1. High power copper motor, working stable.

2. Vertical feed material centrifugal, feeding more uniform.

3. Stainless steel discharge shell, high temperature corrosion resistance, easy heat dissipation.

Application: The raw material can be extruded into pellet. The size of the pellet is: Diameter: 6-12mm. Length: 3-5cm.

20260106114353

Flat die granulator

The output of Flat die granulator can do from 100-5000kg/h.

Model No.	Capacity(kg/h)	Power(kw)	Pellet Size(mm)	Weight(t)	Dimension(mm)
RKL-250	100-200	15	4-6	0.5	14006001000
RKL-300	150-250	22	4-6	0.65	17606701600
RKL-350	100-300	30	4-8	0.76	18606701600
RKL-400	300-600	37	4.5-10	2.2	19008501750
RKL-450	500-800	55	4.5-10	4.3	230011001900
RKL-550	1000-1500	90	4.5-12	5.5	235011002050

best small biomass pellet maker machine small flat die wood pellet making machine

Flat Die Wood Pellet Making Machine

Of course, if you have the need to make some feed pellet mills, but your output requirements are lower, then we have more suitable machines for small outputs

Feed pellet machine

Flat die feed pellet mill has vertical feeding port, which is convenient for feeding, and the hardness of livestock feed pellets is big. The feed is semi-cooked, and it is a good helper for free-range farmers, small feed processing plants and small farms to make pellets. According to the different apertures of the molds installed inside, it can make all kinds of pellet feed flexibly. It realizes the effect of multi-purpose, high return rate and effective enhancement of work efficiency.

The output of Flat die Feed pellet machine can do from 80-1200kg/h.

Model	Capacity (kg/hr)	Power(KW)	Weight(kg)	Dimension (cm)
BH-125	80-100	3	95	11035700
BH-150	110-150	4	98	1153580
BH-210	200-300	7.5	280	1154595
BH-230	350-450	11	300	13846100
BH-260	500-600	15	315	13053105
BH-300	700-800	22	600	14562120
BH-360	800-900	22	795	16067145
BH-400	1000-1200	30	1000	16067145

Features of Flat Die wood pelletizer mill biofuel sawdust pellet machine for farming

1, Wood chip pellet machine can produce a variety of wood chips, straw, husk and other raw materials based biomass particles;
2, The use of cold pressing molding, extrusion molding and other molding technology, grease polishing polishing process makes biomass particles beautiful appearance, more compact structure;
3, Wood pellet machine high output, low energy consumption, low noise, low failure, machine fatigue resistance, continuous production, economic and durable;
4, The whole machine is made of special high-quality materials and advanced shaft transmission device, and the key components are made of high-quality alloy steel and wear-resistant materials;
5, The wood pellet manufacturing equipment mold is placed flat, the mouth is upward, and it is directly into the granulation mold from top to bottom.
