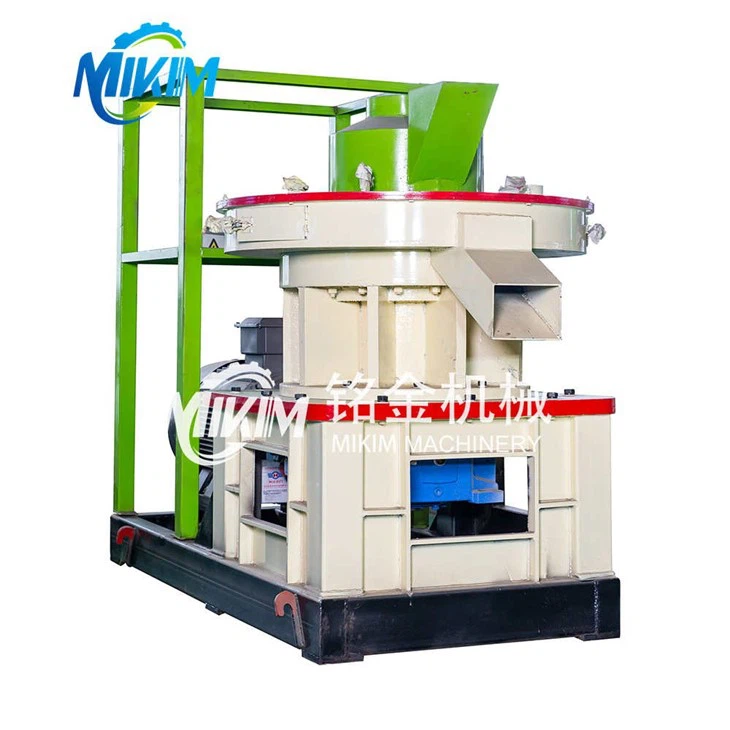

Ring Die Pellet Machine Wood Pellet Machine
Tianjin Mikim Technique Co., Ltd. is one of the most experienced manufacturers and suppliers of ring die pellet machine wood pellet machine in China. If you're going to buy cheap ring die pellet machine wood pellet machine made in China, welcome to get more information from our factory. All our products are with high quality and low price.
Biomass Pellet Making Machine for sell
ring die pellet machine wood pellet machine
1. We have double layer die used on the machine and the main drive adopts the high accuracy gear driving, so the capacity is 20% higher than the belt driving one.
3. It uses the imported high quality bearings, oil seal to make sure the high-efficiency, stable performance and low noisy of the whole machine.
4. The feeder uses variable-frequency and variable-speed motor to make sure the good quality of the pellet.
5. Advanced world standard compensatory S-shaped coupling with the structure of novel, compact, safe, low-noisy and low fault.
6. Feeder, conditioner and chute are made of stainless steel with long service life.
7. It is with magnet and over load protection system, which can protect machine well during production
8. We have different bore diameter of the ring dies for your choice. And the feeder is with a variable speed controlled to meet
different outputs requirements.
9. We have oversized conditioner and jacked conditioner for choosing to enhance the effect of the pellet condition.
ring die pellet machine wood pellet machine
|
Model
|
Power
(kw)
|
Size: L*W*H
(mm)
|
Capacity
(t/h)
|
Pellet Diameter (mm)
|
|
450
|
55
|
2600*1000*2400
|
0.8-1.2
|
6-12
|
|
560
|
90
|
2600*1000*2400
|
1.3-1.8
|
6-12
|
|
580
|
132
|
2900*1300*2400
|
1.5-2.0
|
6-12
|
|
700
|
160
|
2900*1300*2400
|
2.5-3.0
|
6-12
|
|
850
|
220
|
3300*1400*3100
|
3.0-3.5
|
6-12
|
ring die pellet machine wood pellet machine
ring die pellet machine wood pellet machine
This process is the role of material under high pressure, high temperature, produce a physical change or proper chemical changes(depends on different kind of raw materials ), make the powder material form elongated cylindrical solid body, the cylindrical solid elongation continuously will be cutting by uniformly distributed around the mold cutting knifes, become to"pellets" the pellet pusher will collecting the pellets to the outlet place.
