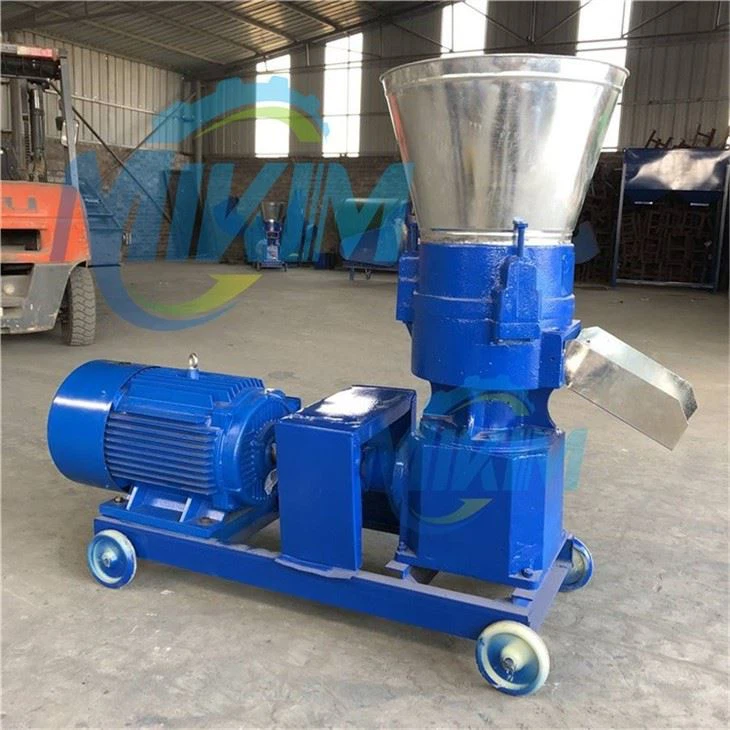

Simple Operation Poultry Feed Pellet Mill Machine for Animal Breeding Farm

Our company set a good example for the industry with high quality Floating Fish Feeding Pellet Machine, Date Pitter, Peanut Chopping Machine and services. We will rely on our system, standards, procedures and equipment to provide our customers with high quality products and services. Our company is a company with rich business experience, strong economic strength, advanced production technology, sound rules and regulations, and diversified services.

Overview

Our Animal Feed Pellet Mill Machine is based on the motor as the power and the circular motion of the machinery, which makes the pressing stick rotate itself under the action of friction, and the temperature is generated between the pressing stick and the granule, and the powder material is discharged from the die hole by high temperature paste under the squeezing action of the pressing stick, and then the granule made is sent out of the machine by the throwing disc, and finally the length of the granule is controlled by the cutting knife.

Animal Feed Pellet Mill Machine has simple structure, wide applicability, small footprint and low noise. The pellets made by this machine have high hardness, smooth surface and full internal maturation, which can improve the digestion and absorption of nutrition and kill general pathogenic microorganisms and parasites, and are suitable for raising rabbits, fish, ducks and experimental animals, and can obtain higher economic benefits than mixed powder feed.

Why Feed Pellets To Livestock?

Because the powdered feed will shorten the digestion process of the cattle and sheep, which causes the cattle and sheep to continue to eat. Feeding cattle and sheep with pellet feed is an ideal choice, because this feed meets the characteristics of animals that need to digest food for a long time.

In addition, by modulating feed pellets with different formulas to feed animals such as cattle, sheep, etc., it is possible to add nutrients and supplement trace elements to the animals in a timely manner to ensure healthy feeding of the animals.

How To Make Animal Feed Pellets?

The feed pellet machine adopts the working principle of high-speed grinding and squeezing, which can quickly crush the raw materials and squeeze them out of the pores of the grinding disc to make particles with uniform density. This kind of animal feed pellet mill is not only suitable for household use, but also suitable for small and medium-sized cattle and sheep farms, chicken farms, pig farms, etc.

Structure Of The Animal Feed Pellet Mill Machine

Cattle and sheep feed pellet machines are welcomed by small farmers, family farmers, and small feed processing factories because of their simple operation, low energy consumption, convenient movement, simple operation, and moderate price.

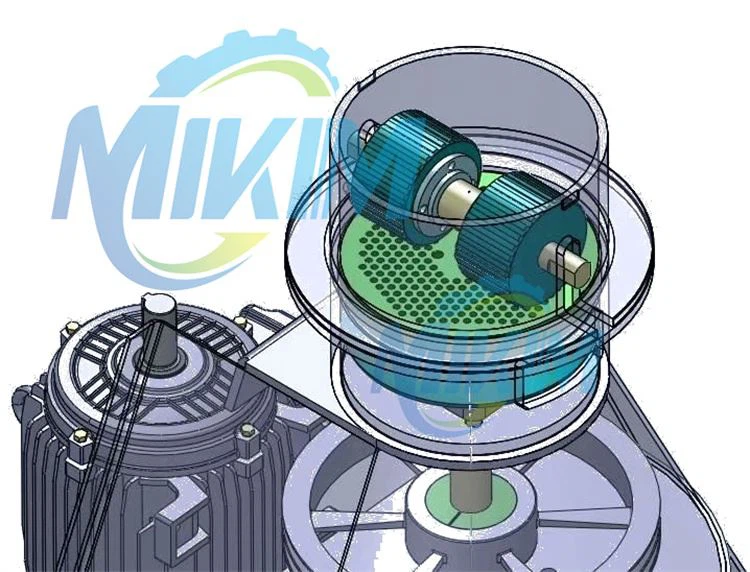

The main structure of the electric animal feed pellet mill includes the feed port (the size of the hopper can be customized), the main engine compartment (mainly the pressure roller and the pressure plate), the discharge port, the motor coupling, the load-bearing bracket, the moving wheel, and the all-copper motor.

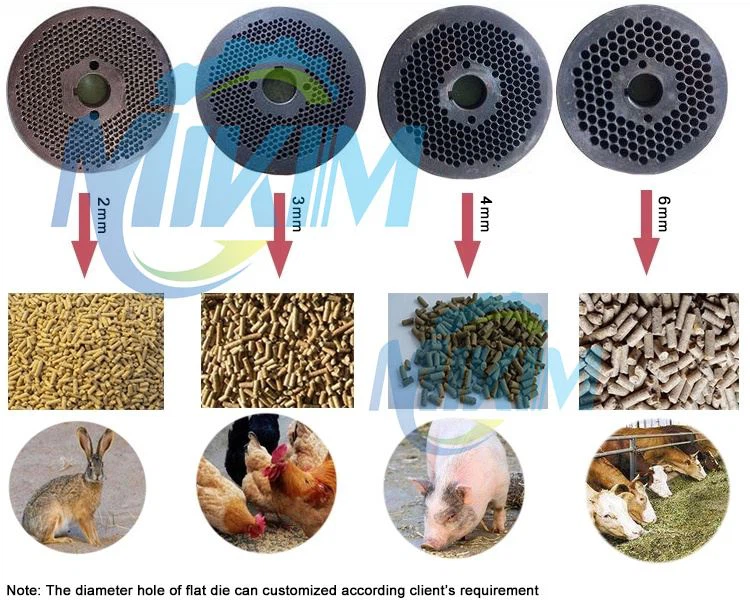

The pressure plate aperture range is usually between 3mm-8mm. The minimum diameter of feed pellets can reach 2.5mm. The smaller the processing diameter of feed pellets, the smaller the output. The number of pressure rollers is usually two rollers, three rollers, and four rollers, and the more the number of pressure rollers, the greater the output.

The structure of the diesel-driven feed pellet machine is similar to the electric feed pellet machine, but their driving method is different.

Parameters Of The Animal Feed Pellet Mill

Model	Power	Output	Dimension
SL-F-125	Single phase, 4kw	80-100kg/h	850*350*520mm
SL-F-150	Single phase, 4kw	100-150kg/h	850*350*570mm
SL-F-210	Three phase, 7.5kw	300-450kg/h	990*430*710mm
SL-F-260	Three phase, 11/15kw	600-800kg/h	1300*450*1100mm
SL-F-300	Three phase, 22kw	1000-1200kg/h	1360*570*1150mm
SL-F-400	Three phase, 30kw	1500-1800kg/h	1550*620*1250mm
