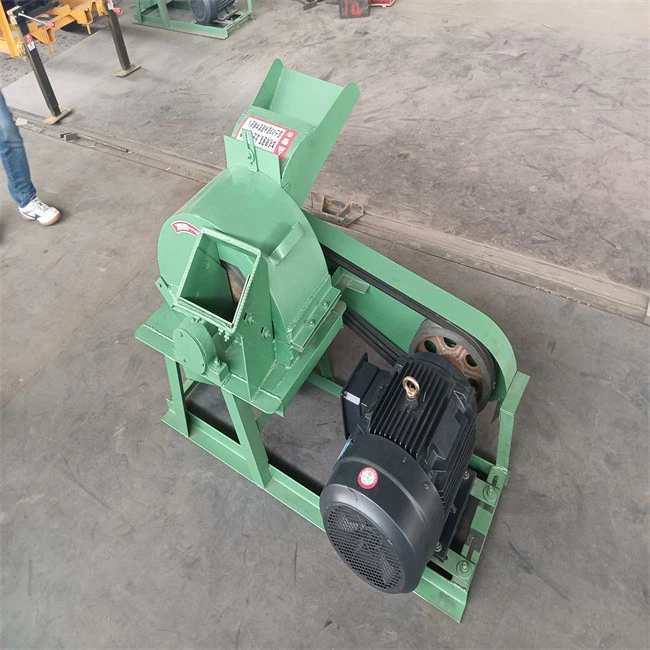

Diesel Wood Pulverizer Sawdust Machine
Tianjin Mikim Technique Co., Ltd. is one of the most experienced manufacturers and suppliers of diesel wood pulverizer sawdust machine in China. If you're going to buy cheap diesel wood pulverizer sawdust machine made in China, welcome to get more information from our factory. All our products are with high quality and low price.
Introduction of diesel waste wood crusher machine
Put the wood into the feed port of wood crusher machine, through the pounding of blades and hammer, wood into the shape of the sawdust, can be processed sawdust can be used for making furniture, plywood, fertilizer, charcoal particles, cosmetics and so on, it has a very wide range, simple operation, high quality, a variety of different production models, suitable for individuals or factories.
The parameter of diesel waste wood crusher machine
|
Model |
600 |
700 |
800 |
900 |
1000 |
1300 |
1500 |
|
Dimension(mm) |
1500*800*1300 |
1500*900*1300 |
1500*900*1400 |
1600*900*1400 |
1800*1100*1700 |
3500*1900*3000 |
3500*2500*3000 |
|
Capacity |
1-1.2t/h |
1.2-1.5t/h |
1.5-2t/h |
2-3t/h |
3-3.5t/h |
3.5-4t/h |
4-5t/h |
|
Speed rpm(r/min) |
2660 |
2560 |
2460 |
2460 |
2360 |
2260 |
2160 |
|
Power(kw) |
30 |
37 |
45 |
55 |
90 |
110 |
138 |
|
The blade/hammer number(psc) |
30 |
40 |
50 |
50 |
50 |
70 |
90 |
|
Blade size(mm) |
180*60*8 |
180*60*8 |
180*60*8 |
180*60*8 |
180*60*8 |
180*60*8 |
180*60*8 |
|
Feeding size(mm) |
600 |
700 |
800 |
900 |
1000 |
1300 |
1500 |
|
Distance between feed |
1300 |
1300 |
1400 |
1400 |
1700 |
3000 |
3000 |
|
Start way |
Electric start |
Electric start |
Electric start |
Electric start |
Electric start |
Electric start |
Electric start |
|
Weight |
1000KG |
1500KG |
2000KG |
2500KG |
3000kg |
3500KG |
4000KG |
Main Features of Diesel Wood Sawdust Crushing Machine 1.can process logs, wood sticks, tree branches and waste wood material into sawdust one time. 2.The size of sawdust can be adjusted by changing screen. 3.this sawdust crusher can be driven with both electric motor and diesel engine according to customer's needs. 4. the machine's color can be customized as client's requirement. 5.Widely used in paper making, edible mushroom, mechanism charcoal, shaving board, sawdust board, high density board and other industrial production in the preparation section.
