Sunflower Oil Extractor
Tianjin Mikim Technique Co., Ltd. is one of the most experienced manufacturers and suppliers of sunflower oil extractor in China. If you're going to buy cheap sunflower oil extractor made in China, welcome to get more information from our factory. All our products are with high quality and low price.

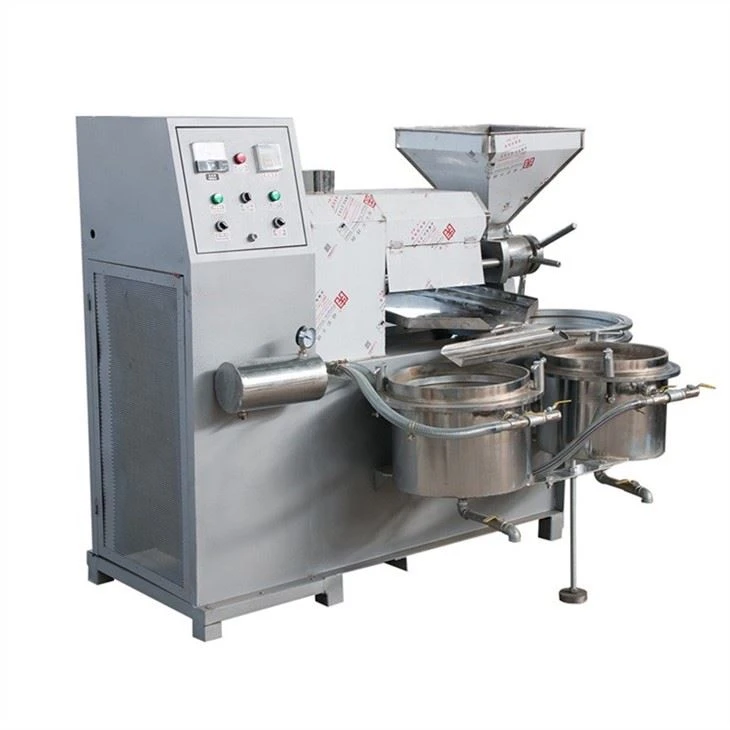

Our Sunflower Oil Extractor has multifunction, including screw oil press, electrical element for heating chamber, vacuum filter for cleaning oil. This type of oil presses are advanced oil processing machinery, characterized by their simple design, easy to use, wide suitability and continuous operation; and high productivity and high oil output rate.
Technical parameters of Sunflower Oil Extractor
|
Model |
HF-80 |
HF-100 |
HF-120 |
HF-130 |
HF-165 |
|
Spiral diameter |
φ 81mm |
φ 101mm |
φ 120mm |
φ 130mm |
φ 165mm |
|
Spiral speed |
40-80r/min |
60r/min |
50r/min |
30-40r/min |
1440r/min |
|
Power |
5.5/7.5KW |
7.5KW |
11KW |
15KW |
22KW |
|
Vacuum pump power |
0.55 KW |
0.75KW |
0.75KW |
0.75KW |
1.1KW |
|
Heater power |
3 KW |
3KW |
4KW |
3KW |
3KW |
|
Cold press |
100-150 Kg/hour |
300-400Kg/h |
350-450Kg/h |
400-450Kg/h |
600-650Kg/h |
|
Hot press |
150-200 kg/hour |
350-400kg/h |
400-500kg/h |
600kg/h |
800kg/h |
|
Weight |
800 Kg |
1000Kg |
1200Kg |
1300Kg |
1800Kg |
|
Dimensions |
1900x1300 x1600 |
1950×1350 ×1700 |
2000×1350 ×1700 |
2200×1200 × 2300 |
2600×780 ×2300 |
Features and advantages of sunflower oil press machine
1. High oil yield: adopting direct pressure type, multi-stage propulsion, one-time pressing, the oil yield is greatly improved.
2. Automatic oil output: Adopting air negative pressure principle, vacuum diversion technology, internal vacuum diversion device. Effective separation of oil residue.
3. Easy to use: compact structure, occupies little space; transmission system adopts fully closed protection, easy to operate.
4. Durable: the use of wear-resistant steel and castings of the scientific combination of stable performance, to ensure that the equipment long-term continuous work, durable.
