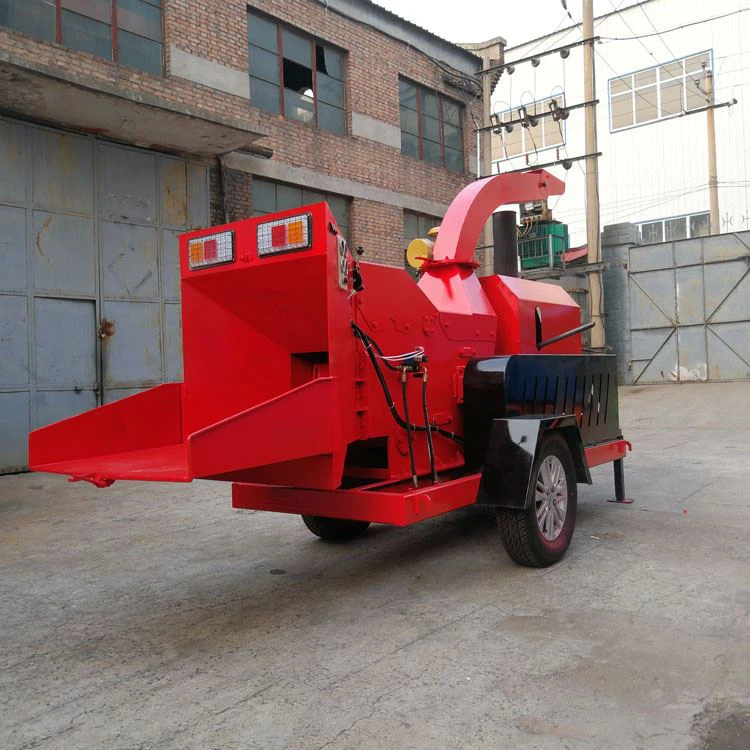

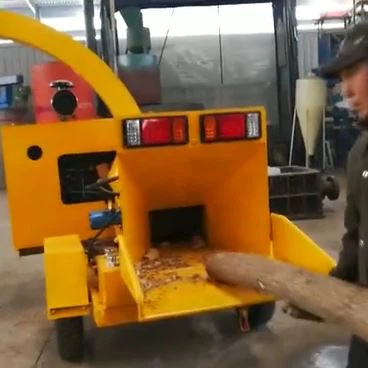

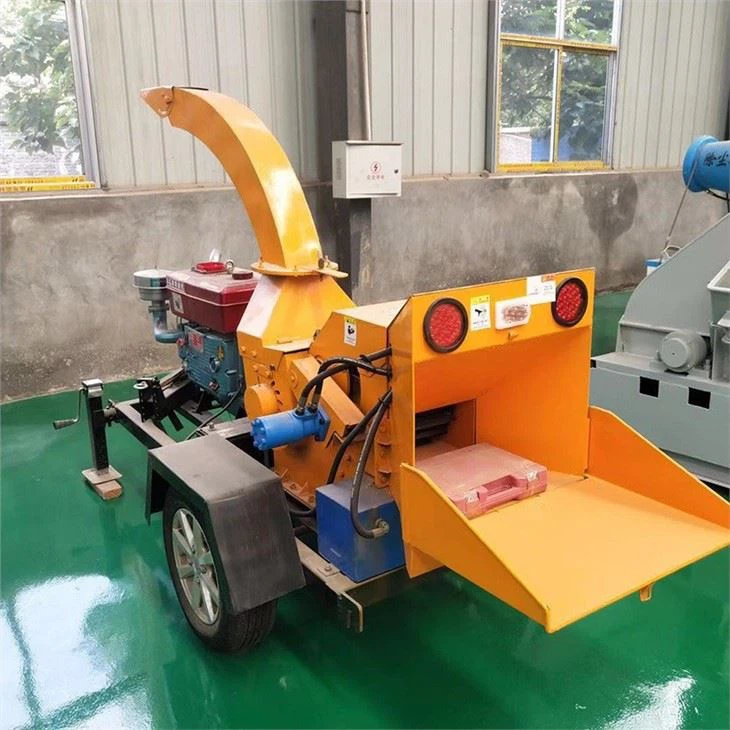

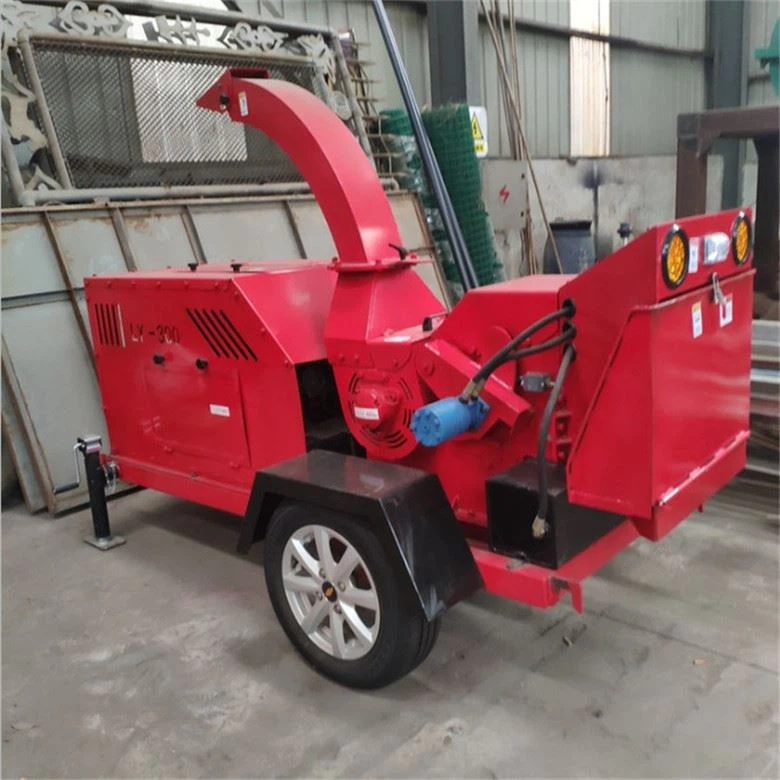

New Type Wood Chipper
Tianjin Mikim Technique Co., Ltd. is one of the most experienced manufacturers and suppliers of new type wood chipper in China. If you're going to buy cheap new type wood chipper made in China, welcome to get more information from our factory. All our products are with high quality and low price.
Description
New Type Wood chipper is a kind of equipment for producing wood chips. Wood chipper is also called wood slicer, which belongs to one of the series of wood processing equipment. It is widely used in the material preparation section in the production process of textile, papermaking, pulping, wood-based panels and other industries.

Parameter
machine type | 600 | 800 | 1000 | 1400 |
Cutter diameter(mm) | 600 | 800 | 1000 | 1400 |
Cutter speed(r/min) | 970 | 740 | 740 | 650 |
chip length(mm) | 2-50 | 2-50 | 2-50 | 2-50 |
Thickness(mm) | 2-15 | 2-15 | 2-15 | 2-15 |
material method | obliquely down | obliquely down | obliquely down | obliquely down |
Feed port size(mm) | 220×240 | 250×250 | 350×380 | 380×400 |
Generating ability(t/h) | 1-3 | 3-5 | 4-7 | 5-9 |
Motor Power(kw) | 15 | 30-37 | 37-45 | 45-55 |
Cut wood large diameter | 240 | 250 | 380 | 400 |
Outlet method | Uphill | Uphill | Uphill | under discharge |
Total Weight(kg) | 1192 | 1680 | 2720 | 3300 |
Dimensions(long×width×high)mm | 2002×1175×1360 | 2008×1400×1492 | 2208×1600×1692 | 2208×1838×1850 |

Feature
The New Type Wood chipper is mainly used to process some waste logs, then the processed materials can be reused, and the waste wood can be used to produce wood-based panels (such as particleboard, MDF, wood-plastic panels, etc.) Can replace solid wood in many applications. So the profit in the middle is also very considerable. If the wood chipper fails during use, it may require emergency stop braking. The wood chipper should pay attention to the emergency stop.
