Waste Wood Shredder Machine
Tianjin Mikim Technique Co., Ltd. is one of the most experienced manufacturers and suppliers of waste wood shredder machine in China. If you're going to buy cheap waste wood shredder machine made in China, welcome to get more information from our factory. All our products are with high quality and low price.

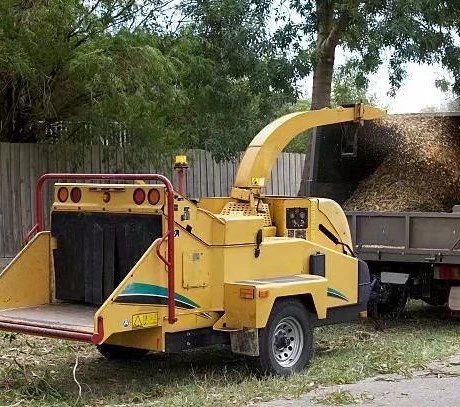

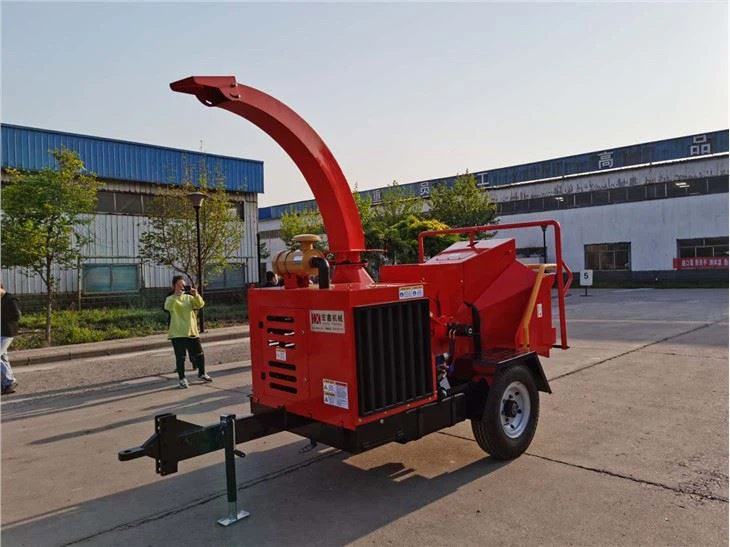

This Diesel Engine branch wood chipper Wood Shredder is driven by diesel enginer power. The wood chipper shredder can be towed by vehicles to worksites. It is convenient wood shredding equipment and for the recycling of tress branches after trimming.
This mobile wood chipper is primarily used to chip branches, undersized logs, wood cutting debris and shrubs to prepare raw material for paper mill, MDF board factory, biomass power plant, organic fertilizer factory, and for landscaping
Model | 6130 | 6130 | 6145 |
Engine type | Diesel engine | Diesel engine | Diesel engine |
Power | 32 HP | 55 HP | 82 HP |
Max cutting Diameter | 15 CM | 20 CM | 20 CM |
Cutter drum Dia. | 300 mm | 300 mm | 500 mm |
Start way | Electric start | Electric start | Electric start |
Speed rpm | 2600 | 2600 | 1800 |
Blade | 4 pcs | 4 pcs | 5 pcs |
Feed press roller Dia. | 280 mm | 280 mm | 600 mm |
Feed roller power | hydraulic | hydraulic | hydraulic |
Feeding size (mm) | 300*200mm | 300*200mm | 450*380mm |
Discharge Direction | 360° | 360° | 360° |
Capacity | 1-2 tons/h | 2-3 tons/h | 3-5 tons/h |
Weight | 650kg | 650kg | 1500kg |
Engine cooling type | Water cooling | Water cooling | Water cooling |
Safety systems | Emergency stop | Emergency stop | Emergency stop |
Battery start | Electric start | Electric start | Electric start |
Noise | Not over 80db | Not over 80db | Not over 100db |
Oil consumption | 6.5L/hr | 7.5L/hr | 14 L/hr |
1>>Good chipper effect: Chips very small. Chips size is between 5mm-50mm;
2>>Good structure: The wood chipper is composed of chassis, drum rotor, feed rollers, blades and hammer, hydraulic system, adjustable valve etc.
3>>High quality blade: Two-edged blades are hardened precision cut tool steel, keeping a sharp cutting edge and maximizing the performance of the chipper. They are made of special material, with over times heat treatment process to ensure longer service time.
4>>Mounting Configurations: There are two different mounting configurations available for the Wood Chipper; A three point hitch and trailer.
5>>Self-feeding Hopper: The self-feed hopper is designed to angle the brush against the rotor and blades, pulling the branches into the chipper.
6>>Roller speed: adjustable according to the diameter of wood.
7>>Machine Foldable: for the convenience of transportation.
