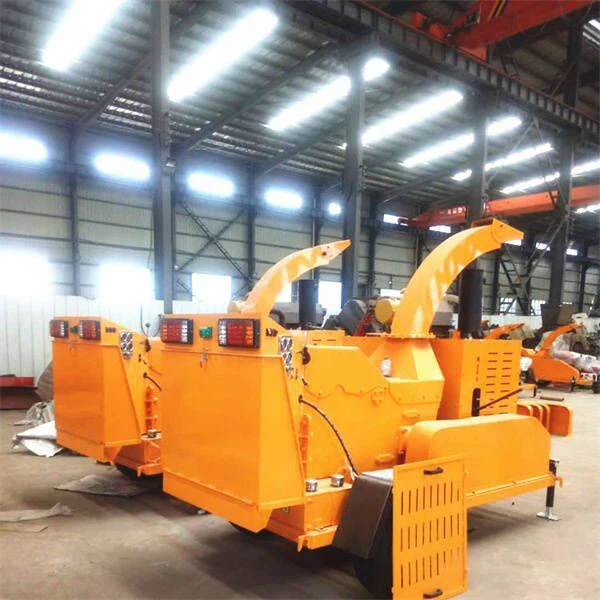

Diesel Integrated Wood Chipper Machine

Diesel Integrated Wood Chipper Machine

Chipping Desel Heavy Duty Wood Chipper 8 inch Diesel wood chipper is widely used on medium and big forestry work,like tree,branches,wood chipping. It has many advantaged 1 CE approved,reliable quality 2 engine opotion,18-50hp diesel engine,multy 3 with towing bar,easy transport 4 hydraulic...
Send Inquiry
Product Details ofDiesel Integrated Wood Chipper Machine

Tianjin Mikim Technique Co., Ltd. is one of the most experienced manufacturers and suppliers of diesel integrated wood chipper machine in China. If you're going to buy cheap diesel integrated wood chipper machine made in China, welcome to get more information from our factory. All our products are with high quality and low price.



Diesel Integrated Wood Chipper Machine





Equipment parameters



Model

6130

6145

Engine type

Diesel engine

Diesel engine

Power

32 HP

82 HP

Max cutting Diameter

15 CM

20 CM

Cutter drum Dia.

300 mm

500 mm

Start way

Electric start

Electric start

Speed rpm

2600

1800

Blade

3 pcs

4 pcs

Feed press roller Dia.

280 mm

600 mm

Feed roller power

hydraulic

hydraulic

Feeding size (mm)

300*200mmm

450*380mmm

Discharge Direction

360°

360°

Capacity

1-2 tons/h

3-5 tons/h

Weight

650kg

1500kg

Engine cooling type

Water cooling

Water cooling

Safety systems

Emergency stop ,

Emergency stop ,

Battery start

Electric start

Electric start

Noise

Not over 80db

Not over 100db

Oil consumption

6.5L/hr

15 L/hr



Diesel Integrated Wood Chipper Machine



Chipper, also called wood slicer, is one of the wood processing equipment. It is widely used in the material preparation section of the production process of textile, papermaking, pulping, wood-based panels and other industries. Chippers can be divided into mechanical structure classification and disc chipper classification.


The main cutting materials of this machine are small-diameter wood, bamboo, board skin material and leftovers of felled firewood after peeling. However, it does not fully have the function of uniform cutting for over-thick (above 350mm), over-thin (below 30mm), over-short (below 250mm), over-thin (below 5mm) and irregular raw materials (undecomposed stumps, branches, etc.), or just cuts the raw materials on the original basis. It does not fully have the function of layered cutting for slices of bamboo with a wall thickness of less than 5 mm. At this time, a re-crusher can also be used to re-crush the oversized wood chips to achieve the ideal size.



Equipment advantages



(1) 360 degrees feeding outlet rotation angle.

(2) Automatic hydraulic feeding.
(3) A pair of knives for free.
(4) high efficiency,6-10m³.
(5) Wide feed port, more convenient.
