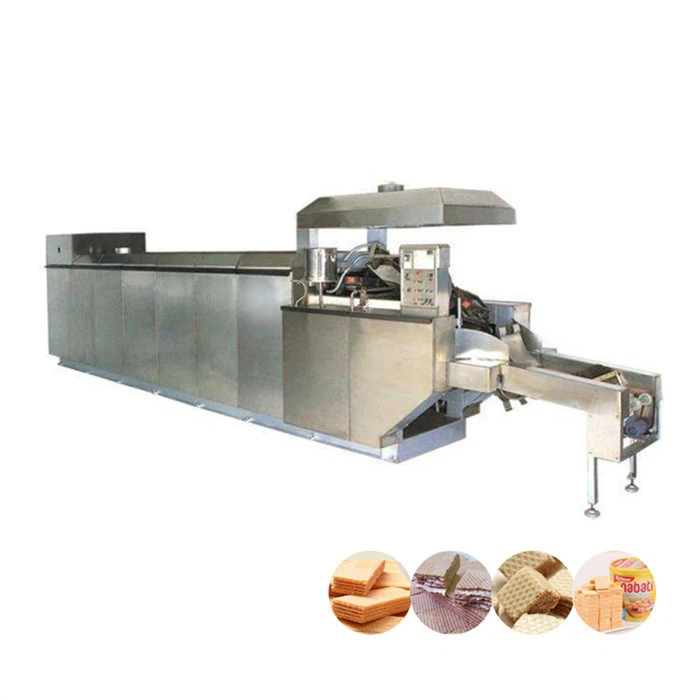

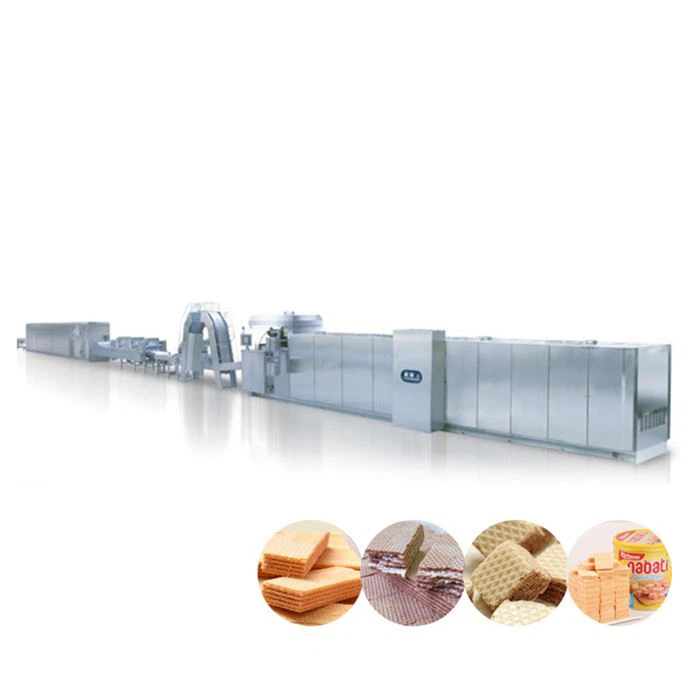

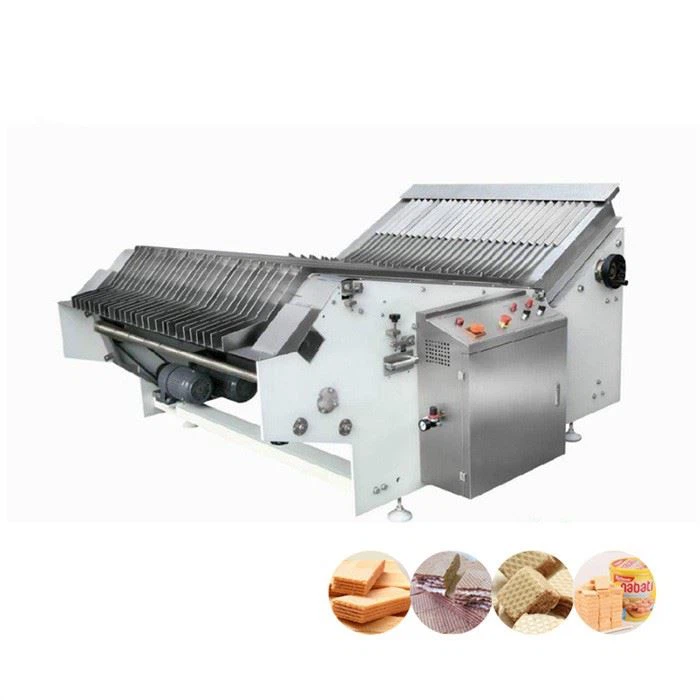

Wafer Biscuit Baking Machine
Tianjin Mikim Technique Co., Ltd. is one of the most experienced manufacturers and suppliers of wafer biscuit baking machine in China. If you're going to buy cheap wafer biscuit baking machine made in China, welcome to get more information from our factory. All our products are with high quality and low price.
The functions of the Wafer Biscuit Baking Machine are fully automatic from spreading batter on the plates to the procedure of baked wafer sheets coming out of the oven. Baking is even and produces good quality wafer sheets for next procedure. In PLC there is a PID controller which is used to control the temperature of the baking plates automatically.
Parameters of Wafer Biscuit Baking Machine
| 1 | Oven Frame | GB steel with high-temperature silver paint on the surface |
| 2 | Baking Tongs | Grey Cast Iron |
| 3 | Plates | Special Heat- Resisting Cast Iron |
| 4 | Gas Consumption | 27kg/h (LPG)38~40cbm/h (Natural Gas) |
| 5 | Thickness of the Wafer Sheet | 2.5mm~ 2.7mm |
| 6 | Weight for wafer sheet | 45grams~60grams( adjustable) |
| 7 | Baking Plates Temperature Adjustable | Normal Temperature to 200℃ |
| 8 | Main Electrical Machine | 380V, 3kW |
| 9 | Production Capacity | 24~28PCS /min |
| 10 | Mixing Pump Machine | 380V, 0.75kw |
| 11 | Dimensions | 10450×1620×2200 (L*W*H) |
| 12 | Main Feature | With Automatic clean device for wafer wastage |
The oven status display and the data reset of Wafer Biscuit Baking Machine are supplied by SIEMENS. The stepping wheel bearings of the mould rack are SKF Explorer. The pressing roller bearings are SKF Explorer. The main drive will be SEW Eurodrive. There is an automatic spurring-cleaned device at the bottom of the baking oven. There is second pressure relief valve from Madas. The floating system is new type. The pressing system, opening system and tension system are improved about the heat-treatment. The main bolts are screws are 8.8 or 12.6 grade. There is a safety cover for batter inductive switch.
Instructions of Wafer Biscuit Baking Machine:
1. The whole shell of the production line adopts 304 Stainless Steel in accordance with the health and safety standard.
2. In according to the clients ' requirements ,we can make a wide range of size and shape cream (chocolate ) filled wafer biscuit full automatically. As the most important equipment of full-automatic wafer production line, tunnel electric baking machine has extraordinarily outstanding performances.
3. Unanimous heat colors of wafer block. Thanks to the scientific selection of heating components, superior material selection for baking plate and reasonable die carrier structure, the heat colors of the center and periphery of the wafer block having been baked are unanimous.
