Tianjin Mikim Technique Co., Ltd. is one of the most experienced manufacturers and suppliers of high-efficiency biomass pellet machine in China. If you're going to buy cheap high-efficiency biomass pellet machine made in China, welcome to get more information from our factory. All our products are with high quality and low price.

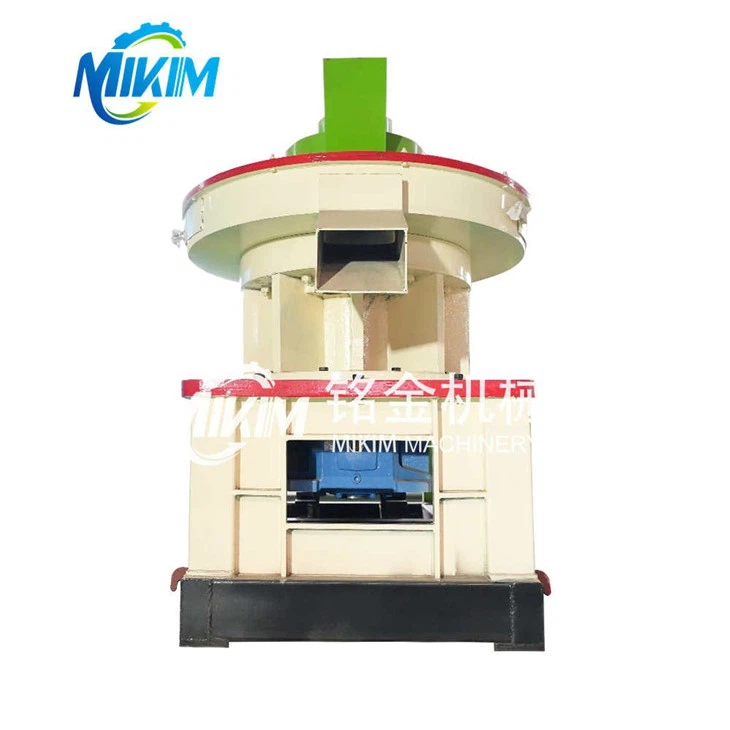

High-efficiency Biomass Pellet Machine
The centrifugal has undergone many core technology improvements and functional improvements since its development in 2010. Now updated to the eighth generation products.
High-efficiency Biomass Pellet Machine
|
Model |
Power (KW) |
Pellet diameter (mm) |
Die diameter (mm) |
Output Capacity (t/h) |
Dimension (cm) |
Weight (t) |
|
TC-J560 |
132 |
6-12 |
560 |
1.5-2 |
260*130*230 |
5.8 |
|
TC-J700 |
160 |
6-12 |
700 |
2-3 |
290*130*240 |
7.8 |
|
TC-J880 |
220 |
6-12 |
880 |
3-4 |
275*165*325 |
12 |
High-efficiency Biomass Pellet Machine
1. The main motor is changed to a standard flat key motor, and the German standard KTR elastic coupling is adopted with the reducer, which solves the problem of regular lubricating grease for the spline of the seventh generation granulator. Moreover, the replacement cost of KTR elastomer is much lower than the replacement cost after spline damage.
2. The positioning of the spindle frame plate and the spindle has been upgraded and improved, the pin positioning that is not easy to disassemble and easy to wear is removed, and the embedded positioning method of CNC machining is adopted, which is easy to disassemble and not easy to wear.
3. Improvement of kick-out system: The reducer of kick-out plate is replaced by a cycloidal pinwheel reducer to a hard-tooth surface reducer. The rotating components of the kick-out system are completely separated from the kick-out boot (the entire driving operation is outside), which completely solves the problem that the kick-out system is susceptible to high temperature steam. Moreover, in the kick-out boot of the pellet machine, except for the kick-out turntable, the rest of the non-moving parts that can contact the material and steam are all made of stainless steel, which fundamentally solves the corrosion problem of metal materials.
