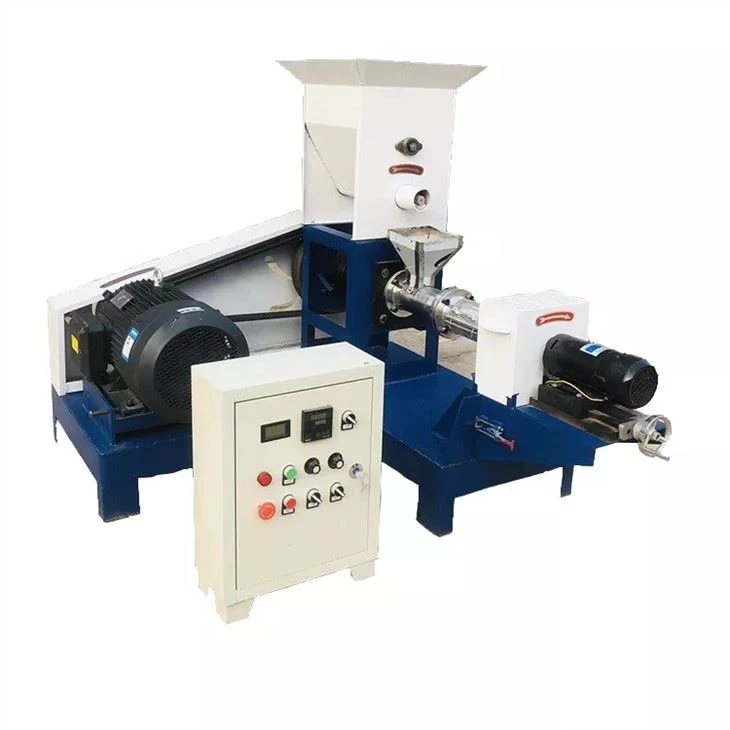

Pet Food Extruder Machine
Tianjin Mikim Technique Co., Ltd. is one of the most experienced manufacturers and suppliers of pet food extruder machine in China. If you're going to buy cheap pet food extruder machine made in China, welcome to get more information from our factory. All our products are with high quality and low price.
1.Application:
The raw materials can be wheat, soybean, cake and other leftovers etc. The final products floating pellets are widely used in frogs, aquatic, ornamental fish, pet feed, fish farmers, small feed mill.
2.Features:
(1)The cutting structure is very advanced with cutter shaft fixed spring to cut to realize. Infinitely speed change; the final output product can be cut freely in different length according to requirement.
(2)The Screw is made of special wear-resisting No38 chromium aluminum molybdenum after tempering, heating and formed; it's with wear-resisting and long life.
(3)In order to ensure quality and capacity, there is special pressurization die device and the electric heating devices improve the feed expansion rate.
(4)The main bearing is from Japanese and Sweden SKF bearing to ensure its safety. The main motor is Y-Series three phrase motor.
(5)The floating pellets will float on the water for about 12hours without spreading. The pellets are no pollution and easy for working members to observe. The materials is health and easy for fish and poultry to absorb. Usually if use floating pellet feed can save 8-15% feed than to use powder feed.
Model | Capacity | Main power | Feeding power | Screw diameter | Cutter power | Pellet size |
DGP-40 | 40-60kg/h | 7.5kw | 0.4kw | Φ40mm | 0.4kw | 1-12mm |
DGP-50 | 60-80kg/h | 11kw | 0.4kw | Φ50mm | 0.4kw | 1-12mm |
DGP-60 | 100-150kg/h | 15kw | 0.4kw | φ60mm | 0.4kw | 1-12mm |
DGP-70 | 180-250kg/h | 18.5kw | 0.4kw | φ70mm | 0.4kw | 1-12mm |
DGP-80 | 300-350kg/h | 22kw | 0.4kw | φ80mm | 0.6kw | 1-12mm |
DGP-90 | 400-450kg/h | 37kw | 1.1kw | φ90mm | 0.6kw | 1-12mm |
DGP-120 | 500-700kg/h | 55kw | 1.1kw | φ120mm | 1.5kw | 1-12mm |
DGP-135 | 800-1000kg/h | 75kw | 1.1kw | φ133mm | 2.2kw | 1-12mm |
DGP-160 | 1200-1500kg/h | 90kw | 1.5kw | φ155mm | 2.2kw | 1-12mm |
DGP-200 | 1800-2000kg/h | 132kw | 1.5kw | φ195mm | 3.0kw | 1-12mm |
Maintenance
1. Equipment operation after each time inside and outside clean, especially the expansion chamber may not retain any material, in order to avoid hard to clean up after cooling agglomeration;
2. Snack cavity spindle pulley should pay attention to often clean, shall not be dust is too much, or you will make the belt imbalance caused by swelling cavity vibration, check the firmness of the belt;
3. Extrusion chamber bearing box adopts high temperature resistant butter, regular replacement, using a machine can be switched on for the first time to use again after 1-2 hours with grease gun is filled.
4. Remove the screw head, shall not be knocking heave.
5. To keep the extrusion machine and its surroundings clean.
6. Monthly check belt firmness
