Silage Cutter
Tianjin Mikim Technique Co., Ltd. is one of the most experienced manufacturers and suppliers of silage cutter in China. If you're going to buy cheap silage cutter made in China, welcome to get more information from our factory. All our products are with high quality and low price.

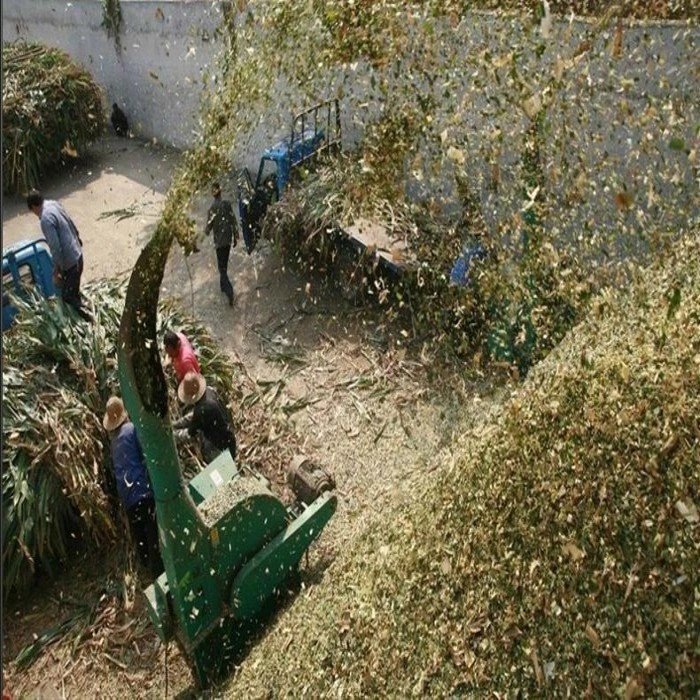

Silage cutter is mainly used to cut the green (dry) corn straw,rice straw and other crop stalks.
It’s a kind of agriculture forage feed processing machine.It suits to feed the cattle,sheep,horse,deer and other animals.It’s a good helper for the farmers to cut the grass.
Speciality of Silage Cutter
Steel structure frame,mobile wheel ,small volume,light weight.
Install the Reverse Gear Systems,keep food in the machine.
The grass roller drive shaft is the rotary shaft coupling, compact structure,flexible operation,convenient disassembling
The blade is made up of superior alloy steel, ultra strong wear-resisting; Uses the high strength bolt,reliable and safe .
The machine rack is welded by thickened alloy steel plate,elegant and durable.
High rate of costs,low price at the same level productivity's straw cutter.
Technical Parameter:
Model | Output(T/H) | Motor (kw) | Cut size | Machine Size |
9ZC-1 | 1.5 | 3 | 11-54mm | 1000*850*1150mm |
9ZC-3 | 2-3 | 4 | 11-54mm | 1230*1150*1695mm |
9ZC-5 | 4-5 | 5.5 | 17-22mm | 1737*1575*2315mm |
9ZC-8 | 6-8 | 7.5 | 12-35mm | 2147*1600*2756mm |
9ZC-9 | 9-12 | 15 | 12-35mm | 2620*2140*4110mm |
9ZC-15 | 13-15 | 18.5 | 12-35mm | 2630*2230*4120mm |
Working Principle
Silage cutter by motor as a supporting power. Will power transfer to the spindle, the other end of the main shaft gear through the gear box,universal joint,etc will pass the speed to transfer the power of the pressure, and when to grass bulk materials and processing in pressure between bulk grass pressure was holding and certain speed into cutter cut institutions, the high speed rotating tool cut up by the grass turned out the mouth.
Application:
These crushed materials are suitable for breeding cattle and sheep deer horse etc. It is also used for crushing grain,corn,wheat,etc.
Buying Guide:
If you a question to choose the model ,pls tell us your requirement on the chaff cutter .
1.Your require kg/h ?
2.Power required ,Motor, Diesel engine, PTO driven ?
3.Other requirement on the machine ?
4.Purchase Quantity set ?
Enable us check and give you an best offer accordingly
