Feed Mill Grinder Mixer
Tianjin Mikim Technique Co., Ltd. is one of the most experienced manufacturers and suppliers of feed mill grinder mixer in China. If you're going to buy cheap feed mill grinder mixer made in China, welcome to get more information from our factory. All our products are with high quality and low price.

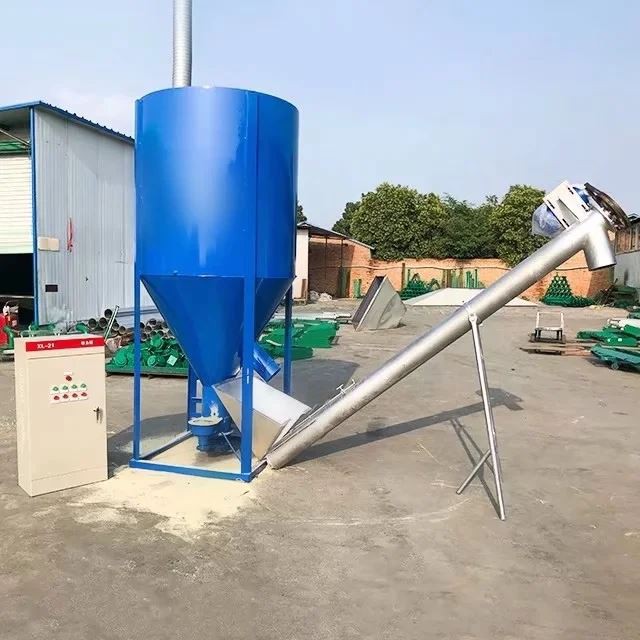

The feed mill grinder mixer is welded with high quality material, and the feeding port is on the top of the mill. It can be matched with various forms of feed structure, and the hammer is arranged symmetrically. When the feed mixer works, the material enters the crushing chamber, and the material is gradually crushed and centrifuged under the action of high speed rotating hammer blow and sieve plate friction. Under the action of force and air flow, it is discharged through the bottom outlet.
Model | JB-500 | JB-1000 |
Voltage | 220V | 380V |
Mixer Power | 3KW | 3KW |
Grinder Power | 5.5kw | 7.5kw |
Capacity | 500kg/h | 1000-1500kg/h |
Mixer | mix:1T /h,500kg/time | |
Hammer | 90mm*18pcs | 120mm*20pcs |
Screen size W*L | 115*1000mm | 200*1500mm |
Effectual Container | 0.5m³ | 1m³ |
Weight | 750kg | 810kg |
Dimension(m) | 244*112*191 | 2.8*1.32*2.15 |
feed mixer with grinder Features and Advantages
1).Low investment and Reward quickly
2).Short mixing time and high evenness, smaller then 5%.
3).Belt driven and gentle mixing process which maintain the original physical condition of the materials
4).Compact structure, beautiful shape ,low noise and less dust
5).Durable in use and easy to maintenance
6).It can work with crusher and pellet mill
Packing & Delivery
Generally,we adopt standard containers, bare main machine, motors and small parts are packed in wooden cases.Or depend on your demands.
1.The mode of transportation we according to the size of the goods or the customer requirements, the small package will take the DHL , TNT, UPS etc , the large size package machine will take the sea shipping and 20ft, 40ft, 40hp container.
2. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
3.The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try them best to save your container quantity.
Hot Tags: feed mill grinder mixer, China, manufacturers, factory, cheap, low price, made in China
