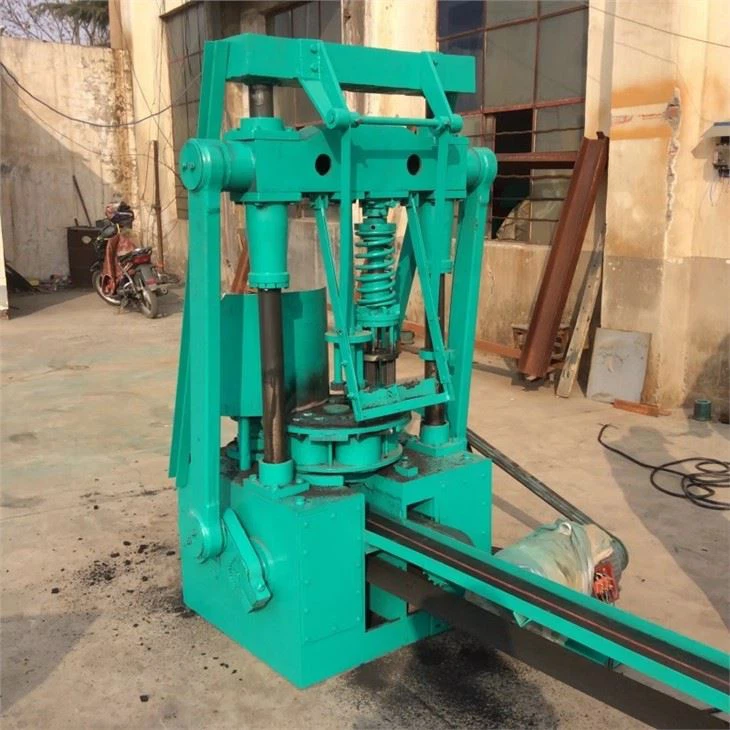

Coal Briquette Forming Machine
Tianjin Mikim Technique Co., Ltd. is one of the most experienced manufacturers and suppliers of coal briquette forming machine in China. If you're going to buy cheap coal briquette forming machine made in China, welcome to get more information from our factory. All our products are with high quality and low price.
Coal briquette forming machine is to regard the well-processed coal dust as raw material, after crush, mix, and then compress to coal briquettes.
This good quality iron raw coal charcoal honeycomb briquette machine uses iron powder charcoal/raw coal charcoal as raw materials. But, at first, the raw materials should be crushed into small pieces (the diameter < 1 mm). And this machine has a large capacity,so it is high efficiency. At the same time, this machine owns a lot of molds, and you can change the molds easily per your special needs.
After several improvements, improved structure, increased density, improved performance, extended service life.
It is also known as briquette forming machine because the holes on the coal briquette make them look like a honeycomb, and also because of this holes, the surface of the coal briquette expands, so the coal briquette can be easily and completely burned, reducing energy waste.
Feature:
Mould:the mold decided its final shape
Feeding:the feeding part consists of a rotating shaft, a hopper and a stirrer. It is driven by an axial gear to stir the coal and mix it into the mold.
Press:the density of briquetting coal is determined by the spring pressing the movable pressure plate to press the coal.
Conveyor:the conveyor is composed of a conveyor frame, a pulley, a bracket and a conveyor belt. The conveyor belt is randomly rotated to send the shaped coal out of the body.
|
Model |
YM-120 |
YM-140 |
YM-160 |
YM-220 |
|
Number of stamping(times/min) |
45 |
45 |
45 |
45 |
|
Number of hopper |
1 |
1 |
1 |
2 |
|
power(kw) |
7.5 |
7.5 |
11 |
11 |
|
Machine weight(T) |
1 |
1 |
1.6 |
3.3 |
|
specification(mm) |
φ100×75 |
φ150×90 |
φ100×75 φ120×75
|
φ220×90 φ200×90 |
Application
It can be used for home heating, central heating, barbecue, boiler burning.
coal, energy, heating, transportation, metallurgy, cement, building materials, chemical and other industries, all the powder materials are pressed. The function of honeycomb coal machine is greatly expanded, and the overall performance of honeycomb machine has reached the international level
Our advantages:
Shape: The Shape of briquette can be round, cylindrical, square, rectangle, Polygon, Hexagon, fan and so on many kinds, or you can have your own ideal shape, we can help you to be your need.
Size: Final size according to the shape and machine mold, also can be decided within a certain range.
Features: Export briquetting with high density, flammable, long burning time, non-toxic, smoke-free and other advantages
