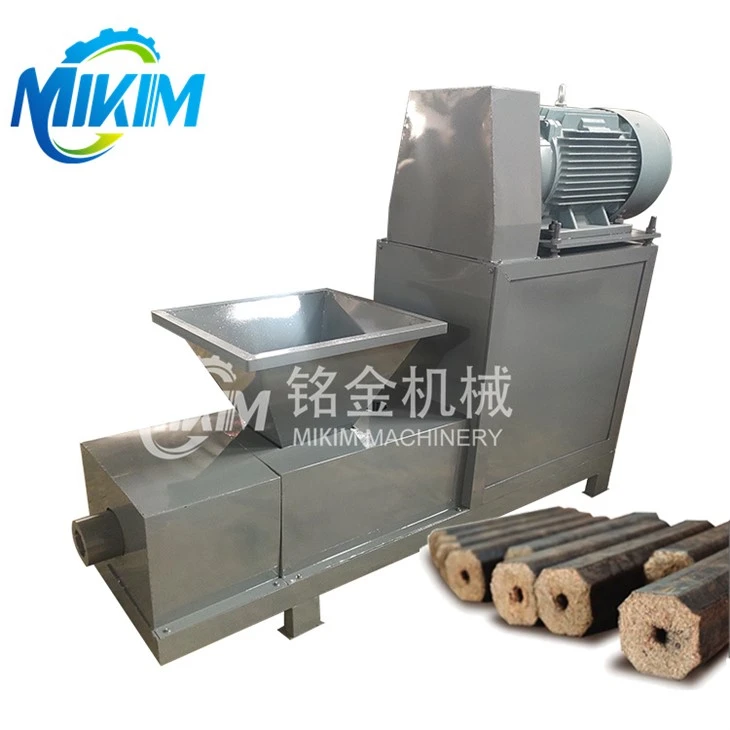

Wood Sawdust Briquette Machine
Tianjin Mikim Technique Co., Ltd. is one of the most experienced manufacturers and suppliers of wood sawdust briquette machine in China. If you're going to buy cheap wood sawdust briquette machine made in China, welcome to get more information from our factory. All our products are with high quality and low price.
Wood Sawdust Briquette Machine
Wood Sawdust Briquette Machine use high temperature 400 degree, high pressure to shape wood sawdust powder into wood briquettes. Wood sawdust's moisture should be less than 15%, dimension should be less than 3mm. Wood sawdust briquettes' density is around 1.3-1.5 g/cm3, the burning time is around 3.5-4 hours.
Equipment advantages
1. It uses a hardened gear reducer with small size and high load-bearing capacity;
2. The internal impeller adopts a thickened blade design, and the impeller and the inner lining of the cylinder are made of wear-resistant precision casting materials, which has a service life 4-5 times longer than ordinary materials;
3. The head coal rod outlet is made of replaceable wear-resistant alloy steel, which is easy to replace;
4. The head and the cylinder are hinged, which can be opened during maintenance, and it is very convenient to replace the internal impeller and cylinder lining.
Wood Sawdust Briquette Machine parameter
| Type | Motor powder | Voltage | Diameter | Capacity | Machine size/m | Machine weight |
| ZBJI | 11kw | 380 or customized | 50mm | 140-200kg/h | 1.75*0.65*1.45m | 360 kg |
| ZBJII | 15kw | 50mm | 180-230kg/h | 1.75*0.65*1.5m | 650 kg | |
| ZBJIII | 18.5kw | 80mm | 300-370kg/h | 1.87*0.66*1.6m | 900 kg |
The coal rod extruder uses a variable pitch impeller to force the coal powder at the rear of the barrel forward. After the volume of the coal powder is compressed in the barrel, it is extruded through the round hole at the front head to form a coal rod. The round hole has a variety of shapes, and the shape of the coal rod also has a variety of shapes. The coal rod is naturally broken by gravity during the forward process.
Finished wood briquettes of Wood Sawdust Briquette Machine are hollow quadrangular, hexagonal or cylindrical 40-80 mm diameter rod shape, with 15-20 mm hole in it. It can used as fuel, boiler heating, cooking, and other field.Especially after carbonized, not only it has long burning time, but also smokeless, smelless, clean, widely used in barbecue market.
