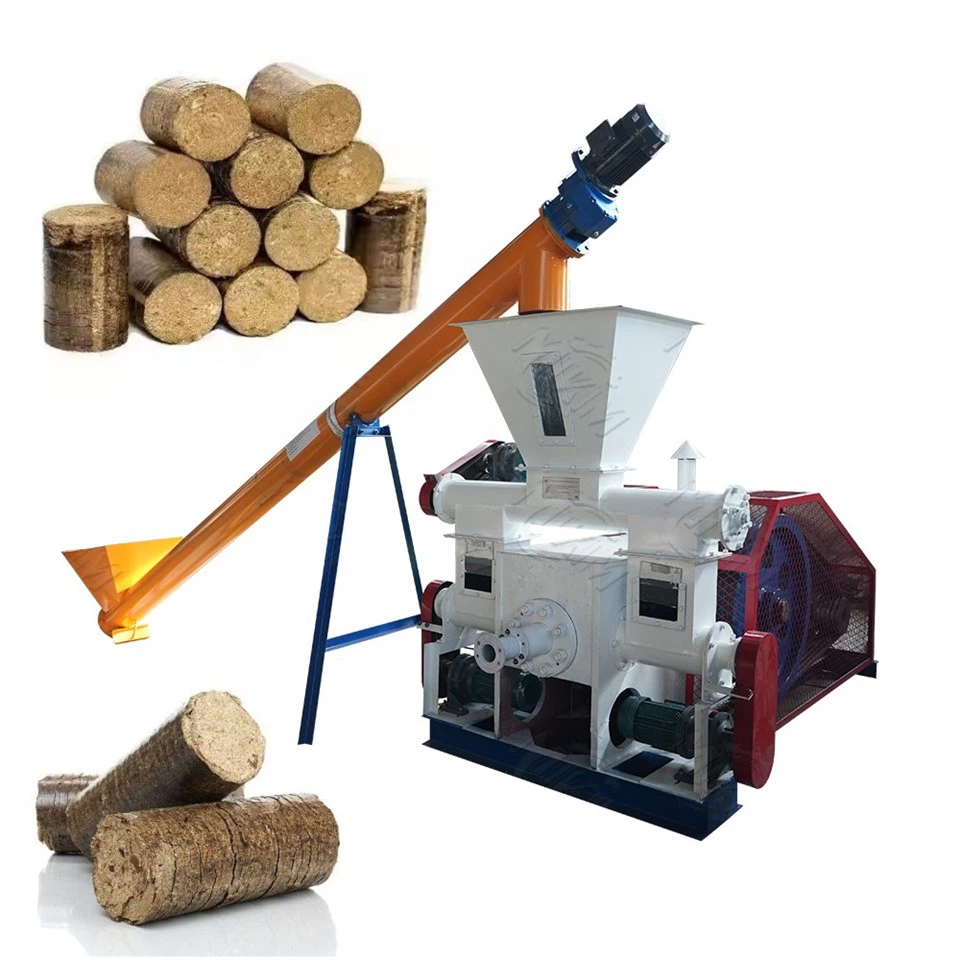

Biomass Briquette Press Machine Price

I am interested in this product

Products Description

Rod making machine, also known as wood powder forming machine, its products can be divided into wood chip rod making machine, rice husk rod making machine, sawdust rod making machine, etc., the equipment is the main molding equipment for the production of It can be less than 12% of the water content of bamboo, wood, fruit shells, straw (except rice stalk, wheat straw) and other granular waste (length ≤5mm, diameter ≤3mm), without adding any binder, after high temperature, high pressure process, extruded into a solid rod with a central hole.

PRODUCT SPECIFICATIONS

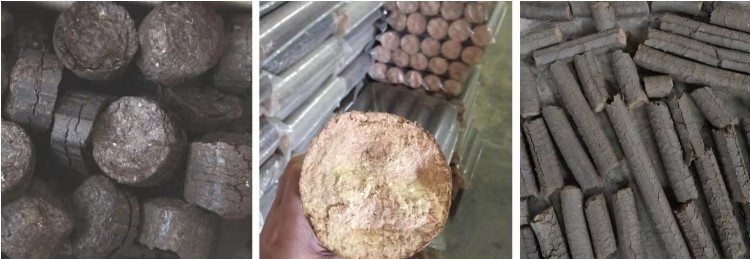

Finished Product Display

The available shape: cylindrical, square, hexagonal, hollow quadrangular, pentagon, pentagon with edge, hexagon with edge.
The available diameter could be: 45mm, 50mm,60mm,70mm,80mm with 15-20 mm hole in it and so on.

Raw Materials & Finished Products

( Size: 0-5mm Moisture Content: 8%-12% )
►Besides the material size must less than 5mm, the humidity of the raw materials is controlled in 8-12%.
►Too wet or too dry will cause a bad forming effect.
►If the material too big, we will recommend you crusher according to your requirement.
►If your material moisture over 12%, we have a sawdust drying machine. After crushing, the material was delivered to the drying machine, then it was sent to forming machine.
If you are not sure if the material is qualified, please contact us

The feature of the Final Product:

Specific gravity: 1300-1900kg/m
Calorific value: 4500-5000kcal/kg
The sawdust produces free radicals, bifunctional under the hot and high pressure condition of the briquettes making machine.
The sawdust can be combined each other closely through a covalent bond.once formed, the combination will remain stable in case
there is no external damage, more stable after cooling.
It can used as fuel, boiler heating, cooking, and other field.
Especially after carbonized, not only it has long burning time, but also smokeless, smelless, clean, widely used in barbecue market.

Product Details

1.The most important parts of the Wood Chip Brick Making Machine,also call screw propeller.
2.It is made from the special chrome alloy and it has the advantage of wear-resistant,high pressure resistance,high abrasion resistance.special wear-resisting material life for more than ten times higher than that of traditional thruster.

1.It is decide the shape, diameter of the final product, and for thr shape, we have square, hexagonal, hexagonal with edge.
2.The barrel made from the tungsten alloy, and the thickness of the mould barrel is 12mm, length is 380-450cm, diameter from 50-70mm.
3.For making charcoal, the diameter 50-60mm will be better, and for the briquette fuel, we can choose from 50-70mm.

Alternatively, we also offer complete production line solutions to manufacture the final product.

The whole wood briquette production line including: (It can be customized according to the customers' capacity.)
1.Crusher (Wood Crusher)
Firstly, you shall crush the wood or other biomass material into sawdust (size: less than 5x3 mm)
2.Dryer (Sawdust Dryer)
Secondly, you shall dry the powdery material until the moisture content is 8%-12%.
3. Biomass sawdust briquettes making machine Third, produce different shapes and size of sawdust briquettes by our wood briquette machine.
4.Carbonization furnace
The forth step: you shall carbonize the sawdust briquette into charcoal briquettes.
Then you can get the smokeless wood charcoal briquettes.

Biomass briquette press machine can compress agricultural and forestry wastes into briquettes by high-speed compression.Increase the proportion of biomass, extend the burning time, and facilitate storage and transportation.The machine is consisted of conveyor system,forming system,outlet,heating and control cabinet.

RDF waste fuel rod briquetting machine test in our factory

I am interested in this product

rice husk briquette machine price

Features

Waste agricultural straw can be pressed into feed pellet by adjusting compressed density,which can be used for feed cow and sheep and other animals.
1.Raw materials:hay,straw,forage,alfalfa,peanut shell,corn stalks,bean stalks,etc

2.The density is 20-30 times higher than the original straw, which is convenient for transportation and storage.

3.During the press process, the straw produces high temperature (100°C), which has a slight paste taste, which is loved by livestock, and the feed intake rate can reach 100%

4.High temperature and high pressure, insecticide and sterilization, no additives, pure natural feed, safe feeding. Good for digestion by livestock

5.The briquette size is 32*32*20-80mm, which can meet the needs of ruminants for crude fiber

Product Parameters

FAQ

Q1: What Is A biomass biofuel briquette press machine And How Does It Work?

A: A Briquette Making Machine Biomass is an industrial equipment designed to compress agricultural and forestry waste (like rice husks, wood chips, and straw) into high-density pellet or rod-shaped fuel. Using a mechanical ramjet or screw press principle with high temperature and pressure, it transforms loose waste into a renewable, eco-friendly solid fuel that can replace coal in boilers and power plants.

Q2: What Raw Materials Can Be Processed By The Biomass Briquette Press Machine?

A: Our machine is highly versatile and can process a wide range of materials, including:

• Agricultural Waste: Rice husk, straw (wheat, corn, rice), peanut shells, beanstalks, and coconut shells.
• Wood Materials: Sawdust, wood chips, eucalyptus bark, and forest residuals.
• Others: Cow dung, paper waste, RDF (Refuse-Derived Fuel) industrial solid waste, and forage/hay.

Q3: Do I Need To Add Any Binder/Glue To Form The Briquettes?

A: No. Our biomass briquette making machine utilizes binder-less technology. Through high-pressure mechanical compression and high temperatures, the lignin in the biomass is specialized to act as a natural glue, binding the material into a solid, high-density briquette without any chemical additives.

Q4: What Are The Requirements For Raw Materials (Size And Moisture)?

A: For optimal performance and high-quality briquettes:

• Size: Raw materials should be crushed to ≤ 5mm.
• Moisture Content: The ideal moisture level is between 10% and 20%. The final briquette will have a moisture content of less than 12%, ensuring high combustion efficiency.

Q5: Can The Biomass Briquettes Be Used As Animal Feed?

A: Yes. By adjusting the compression density, the machine can produce feed pellets/briquettes for cattle and sheep. The process reaches temperatures of 100°C, which sterilizes the feed and produces a slight toasted aroma that improves livestock palatability and digestion.

Q6: What Are The Main Specifications And Capacities Available?

A: We offer a range of models to meet different production needs:

• Standard Series: Capacity of 1200-1500 Kg/Hour with a 45Kw-61Kw power system.
• MKYK Heavy-Duty Series: Capacities ranging from 1.0 T/H to 10.0 T/H.
• Briquette Sizes: Standard diameters are 70-80mm, or rectangular shapes (32*32mm) depending on the mold.

Q7: What Are The Advantages Of Using A Stamping Biomass Briquette Press?

A:Steady Output: Mechanical ramjet design prevents blocking.
Durability: Uses vacuum-fired alloy steel for a longer die life.
24/7 Operation: Designed for continuous industrial production.
Eco-Friendly: High calorific value and clean combustion, reducing carbon footprints.
Cost-Effective: High degree of automation requires minimal labor.

Q8: Why Choose Mikim Machine As Your Supplier?

A: Mikim Machine offers European-standard technology with competitive pricing. Our equipment is exported globally to Southeast Asia, Europe, Africa, and the Middle East. We provide integrated solutions including feeding systems, conveyors, and control boxes, and we are currently looking for overseas agents.
